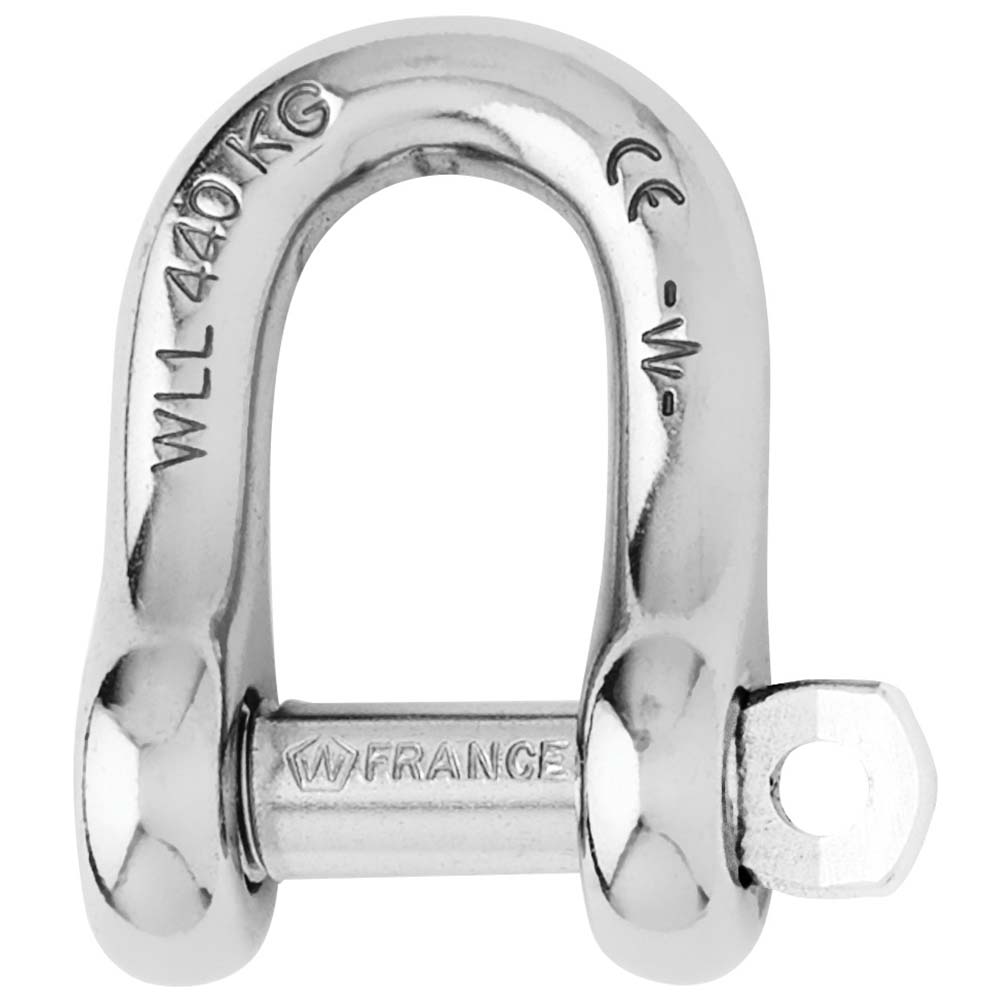

Captive Pin D Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.035

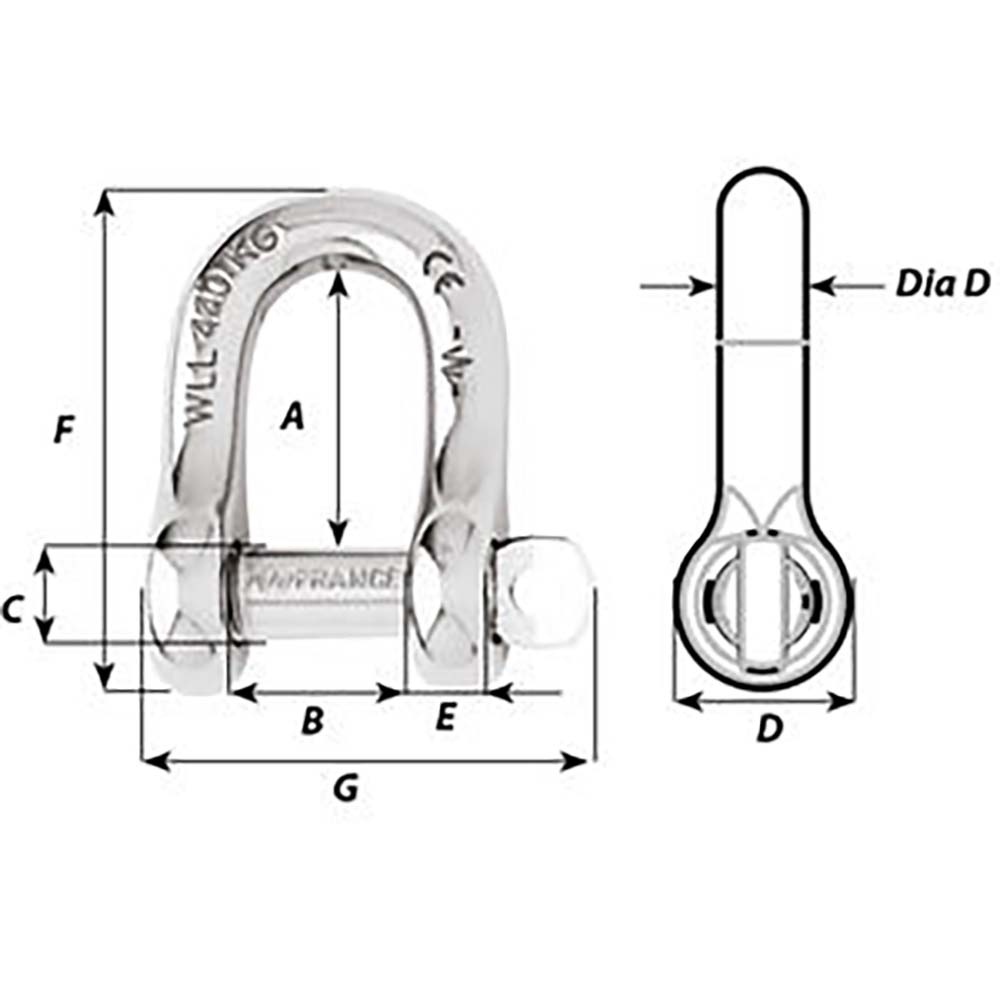

Dimensions (see 2nd image):
- A (inch) 5/8"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 7/16"
- G (inch) 1-3/16"
- H (inch) 1-1/16"
