• Uflex UP28R Rear Mount Helm 17 cu 34 Tapered Stainless Steel Shaft UP28R

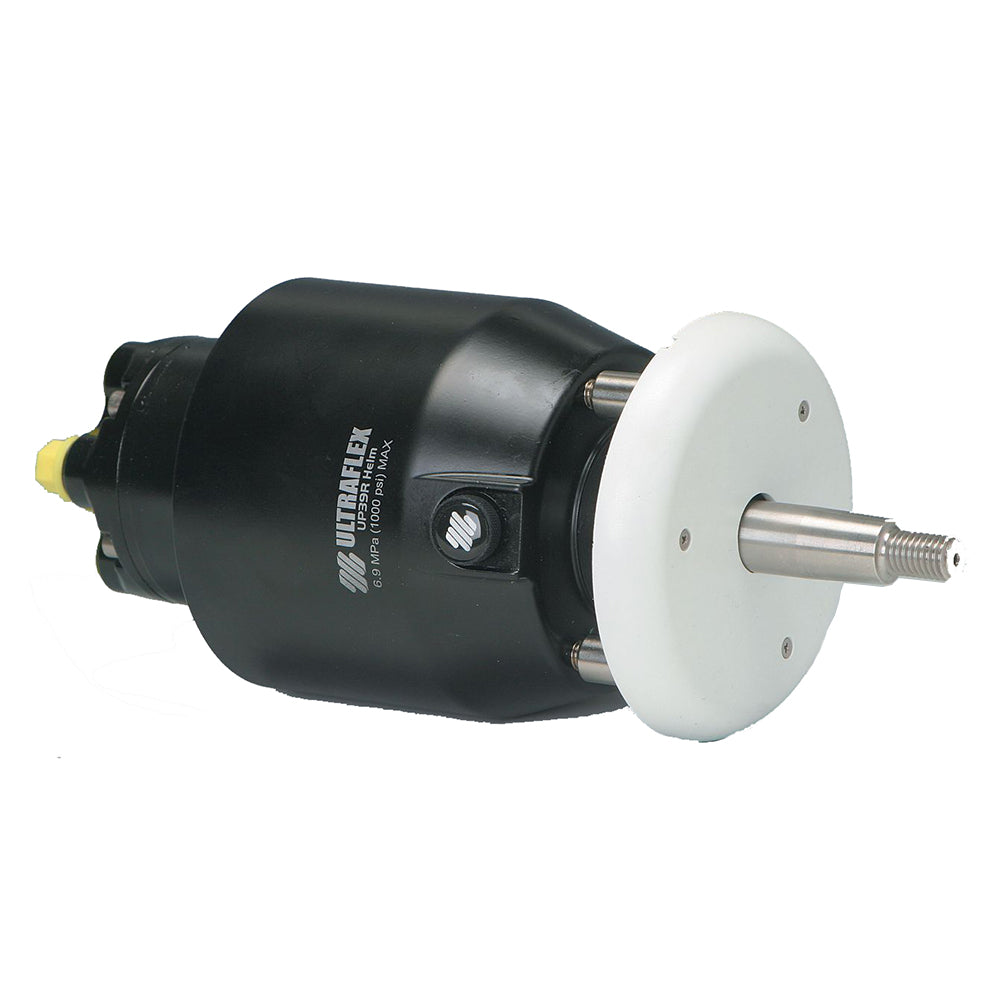

Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]

Low stock! Only 3 left
$819.99
$819.99 $1,010.16
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance

Question about this product?

We're happy to help.

Up to 19% off

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

Features:

  • Available in four different displacement sizes
  • Compact design
  • Ball bearing piston race
  • Built-in lock valve for positive rudder lock
  • Integral relief valve for over-pressure protection
  • 3/4” tapered stainless steel shaft
  • Easily accessible lock valve and shaft seal for replacement
  • Cast iron cylinder rotor for greater durability and longer life
  • 1/4" NPT fitting for 3/8" tube
  • Includes 90° adjustable fittings for 3/8” tube and white bezel
  • UP45R pump is ideal for double cylinder outboard applications
  • UP45 pump is available also for inboard application
  • X68 (optional) - 40894Z Chrome bezel
  • KITF (optional) - 39664Y Remote fill adapter

Specifications:

  • Mounting: Retro-cruscotto
  • Displacement/Revolution: 28 cc-1.7 cu in
  • # of Pistons: 5
  • Relief Valve Setting: 70 Bar - 1000 PSI
  • Maximum Wheel Diameter: 710mm - 28"
  • Weight: 5kg - 11 lbs.
Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]
