• Trident Marine 58 x 50 Boxed Type A2 Fuel Vent Line Hose Black 3170586

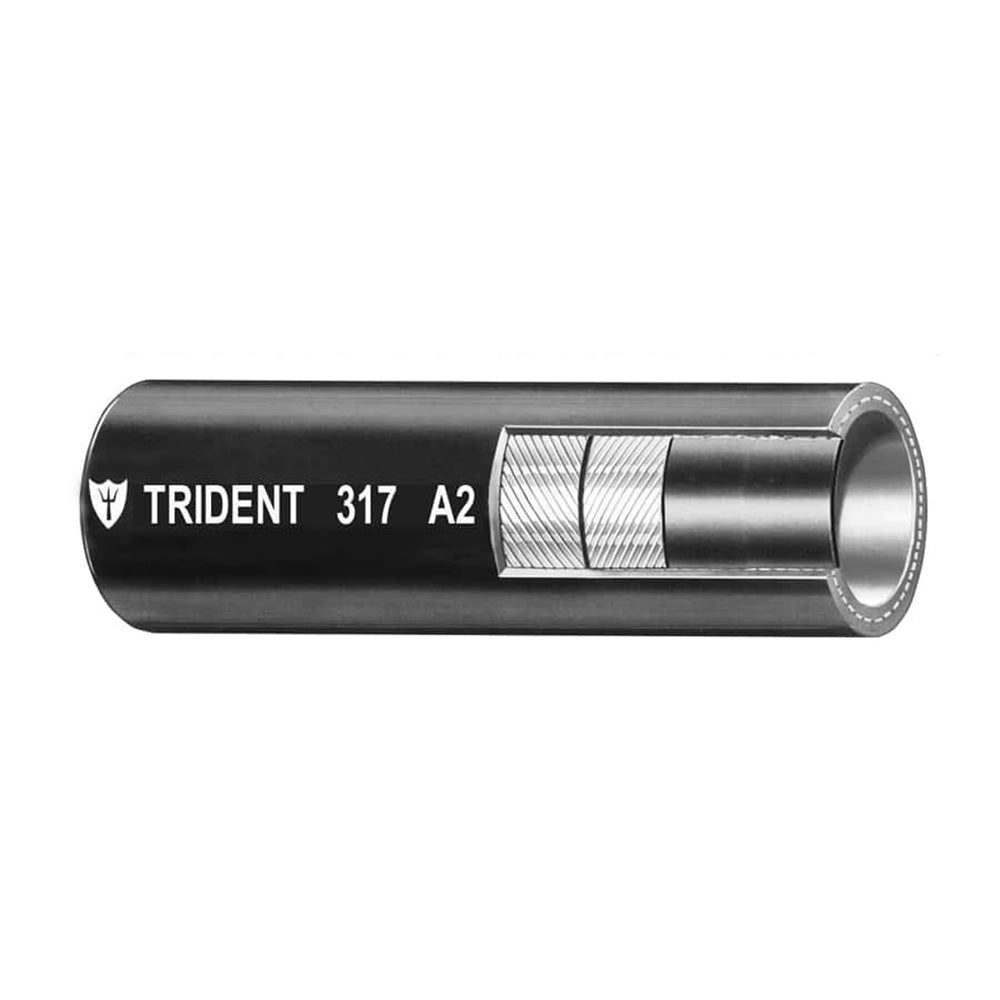

Trident Marine 5/8" x 50 Boxed Type A2 Fuel Vent Line Hose - Black [317-0586]

Out of stock
$178.99
$178.99 $266.33
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 33% offSold out

5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - Black

Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

  • Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Application:

  • Fuel Hose for vent and diesel distribution
  • For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50 ft. (15 m) Boxed

Specifications:

  • Inner Diameter: (inch) 5/8" / (mm) 15.9
  • Outer Diameter: (inch) 0.960 / (mm) 24.4
  • Burst Pressure: (psi) 200 / (mpa) 1.38
  • Working Pressure: (psi) 50 / (mpa) 0.34
  • Bend Radius: (inch) 3" / (mm) 76.2
  • Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2

Specifications:

  • ID Diameter (inches): 5/8"
  • Length (Feet): 50'
  • Box Dimensions: 5"H x 18"W x 18"L WT: 13.5 lbs
  • UPC: 704917009001

Quick Guide (pdf)
