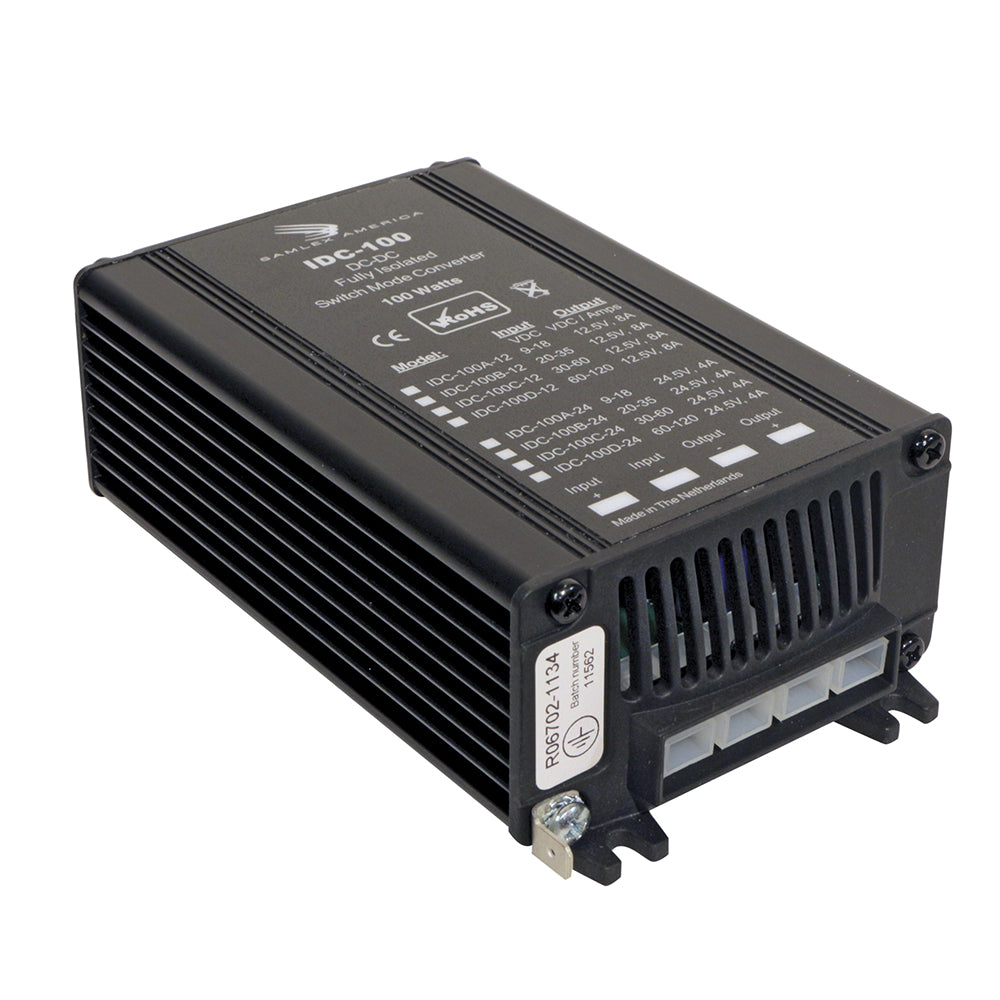

Samlex 100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output [IDC-100A-12]

100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• 2 Year Warranty

Specifications:

• Input: 9.2-18 VDC
• Output: 12.5 VDC
• Amps: 8 Amps
• Weight: 1.2 (lbs)
• Weight: 0.54 (kg)
• Dimensions: 6 x 3.5 x 1.9 (in)
• Dimensions: 15.2 x 8.9 x 4.8 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
