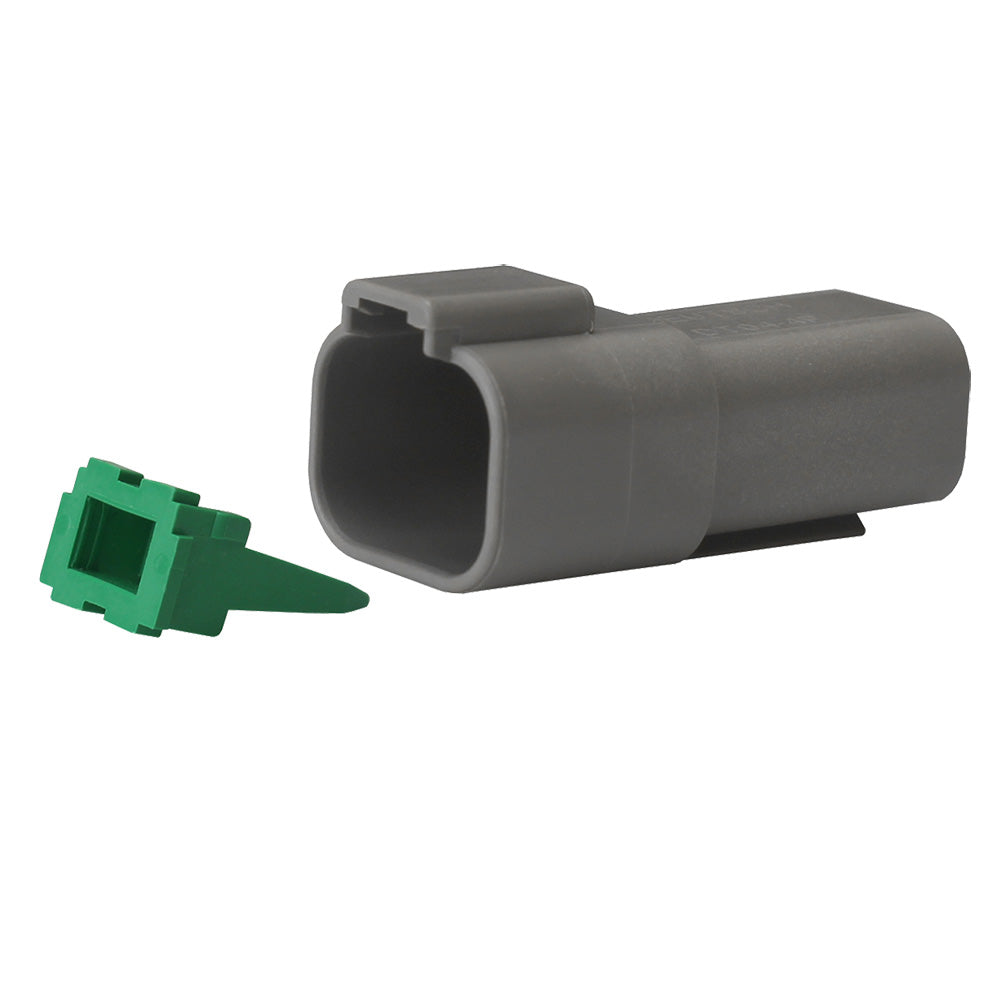

Pacer Deutsch DT Receptacle Wedge Lock Kit - 4 Position - 10 Pack [TDT04-4P-10]

Deutsch DT Receptacle & Wedge Lock Kit - 4 Position - 10 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 4
• Cavity Style: Receptacle (Pin)
• Package Size: 10
• Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55°C to 125°C
