• Navico StructureScan 3D Stainless Steel ThruHull Transducer Single 00013559001

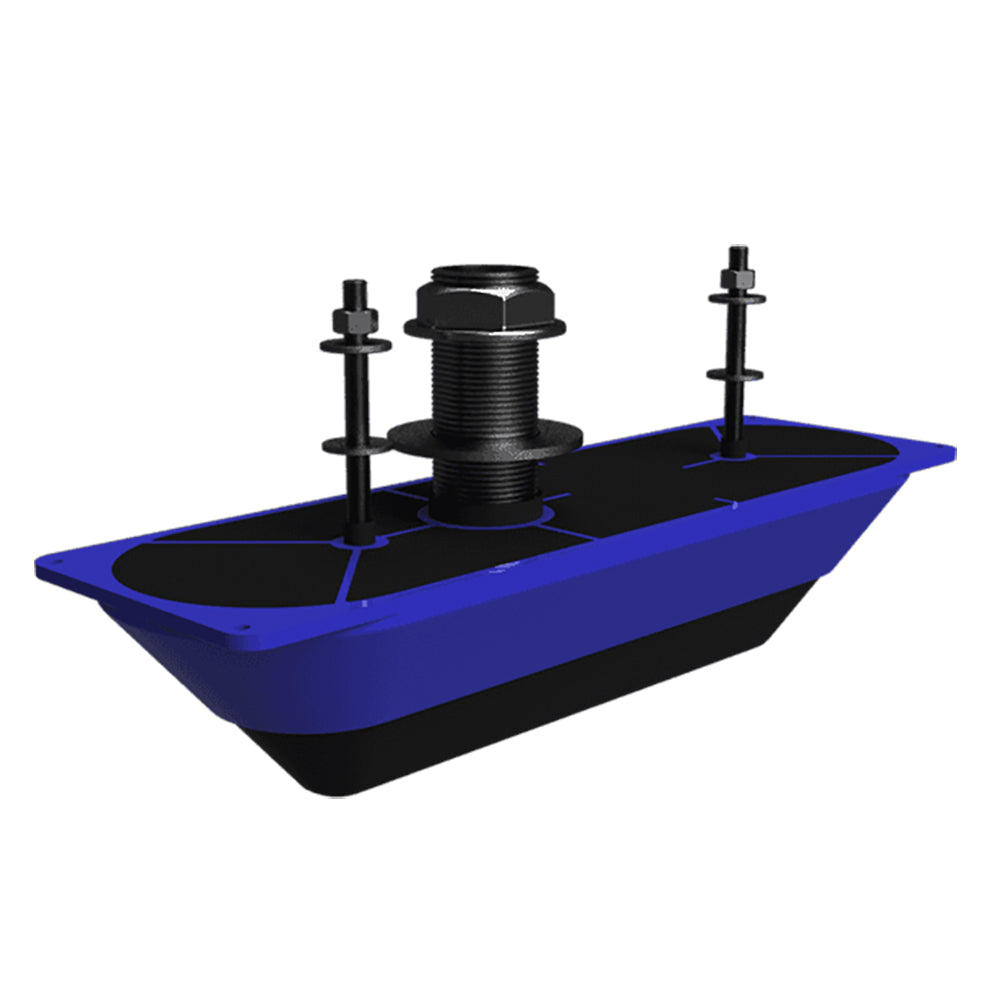

Navico StructureScan 3D Stainless Steel Thru-Hull Transducer - Single [000-13559-001]

Out of stock
$1,475.99
$1,475.99 $1,611.00
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 8% offSold out

StructureScan 3D® Stainless Steel Thru-Hull Transducer - Single

Lowrance and Simrad Yachting announce the release of new thru-hull StuctureScan 3D® Stainless Steel transducer for the StructureScan 3D® Sonar Imaging product line, providing more range and greater resolution.

  • As with transom-mount StructureScan 3D® transducers, the thru-hull Stainless Steel version deliver extreme target detail, bottom discrimination plus bait and game fish separation at depths to 300'(92M) and a wider range of 600'(183M) Left & Right coverage.
  • These Stainless Steel StructureScan 3D® transducers from Airmar® are available only from Navico exclusively for StructureScan 3D® systems. These sturdy, Stainless Steel StructureScan 3D® transducers are resistant to the electrical forces in the environment where it will be used.
  • Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan plus DownScan Imaging™ & 3D Imaging technology; an optional high-performance fairing is avaliable (000-13581-001) give you greater StructureScan performance at speeds; and feature a 30'(9M) transducer cable.
  • For boats with steep or variable deadrise hull angles, consumers must purchase the StructureScan® 3D Stainless Steel Thru-Hull Pair (000-13560-001).

Specifications:

  • Pins: 12
  • Mounting Style: Thru-Hull
  • Imaging: Down/Side
  • Chirp: No
  • Temperature: Yes
  • Cable Length (Feet): 25'
  • Speed Included: No
  • Box Dimensions: 5"H x 12"W x 16"L WT: 7.6 lbs
  • UPC: 9420024157701
