Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65° Sweep

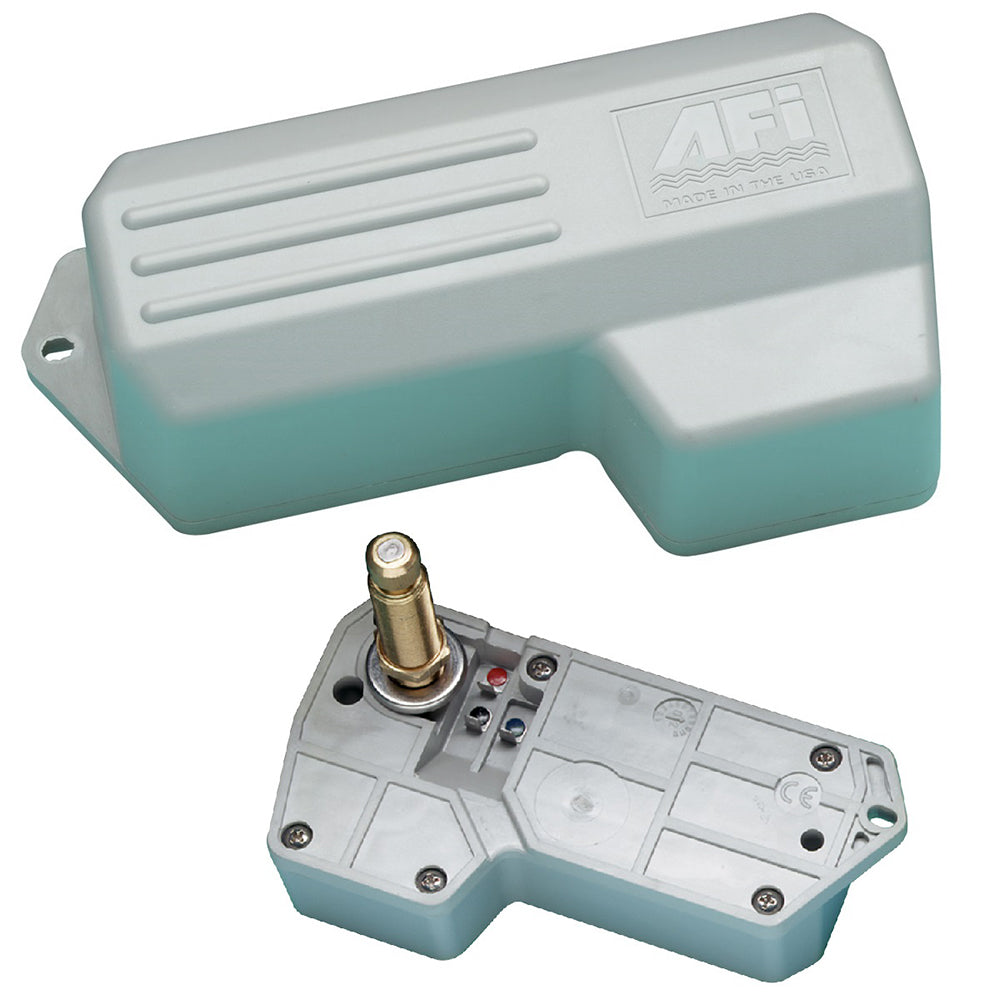

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

  • Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
  • 0.625" diameter shaft (16 mm)
  • 12 volt heavy-duty motor with anti-rotation drive shaft
  • Knurled drive shaft and solid brass arm drive nut
  • Coast to park with adjustable right or left self parking
  • Retail version includes 5 amp fuse and holder (on/off switch not included)
  • RF shielded circuitry
  • Weight: 1.75 lbs
  • Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
  • Measures approximately 6.625" L x 3.375"W x 2" D
  • Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
  • Stall current: 9.8-10.0 amps
  • No load current: 0.8-1.2 amps
