Maretron 12 Circuit Bypass Module NMEA 2K w/o Fuse Pack Jumper Wire [CBMD12]

12 Circuit Bypass Module NMEA 2K without Fuse Pack & Jumper Wire

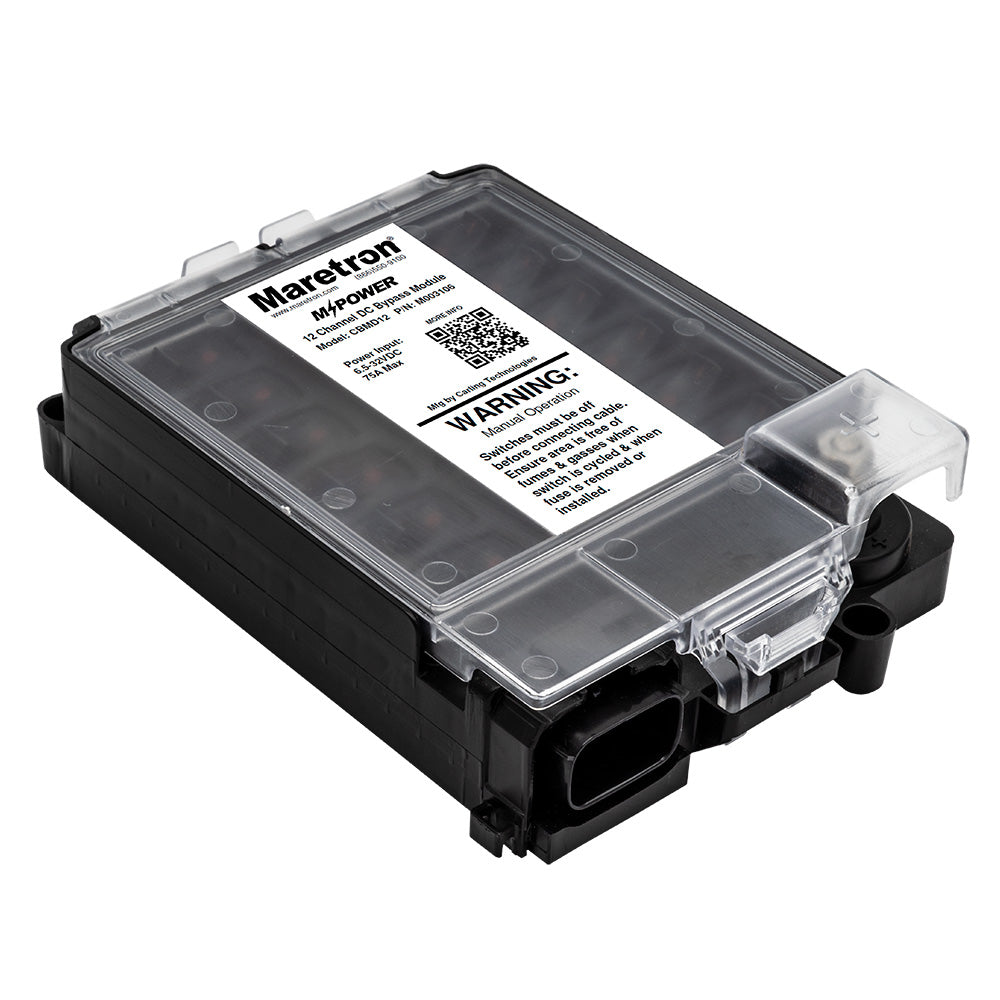

For manual control of the loads, an optional MPower® 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems.

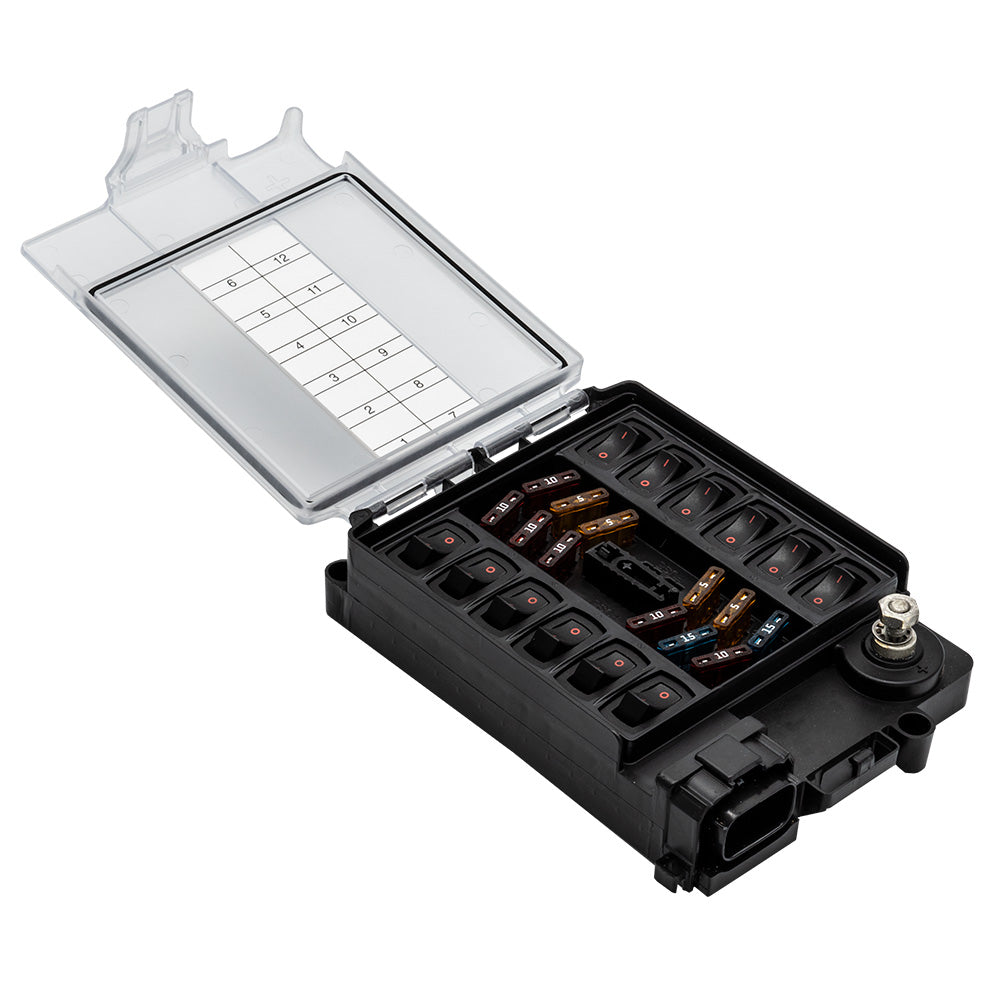

The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000® network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette® Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse, which can cause electrical connections to degrade or the possibility of ignition.

It’s important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Please note that the bypass module does not support paralleled outputs, since each circuit is controlled by a separate switch. Additionally, the bypass module does not support dimming of circuits.

Features:

• 75 Amps maximum current capacity
• Outputs
• 12A Max (two outputs)
• 10A Max (six outputs)
• 5A Max (four outputs)
• 12V and 24V DC power systems
• Carling Technologies Curvette® Rocker Switches
• Overcurrent protection via ATC standard fuses
