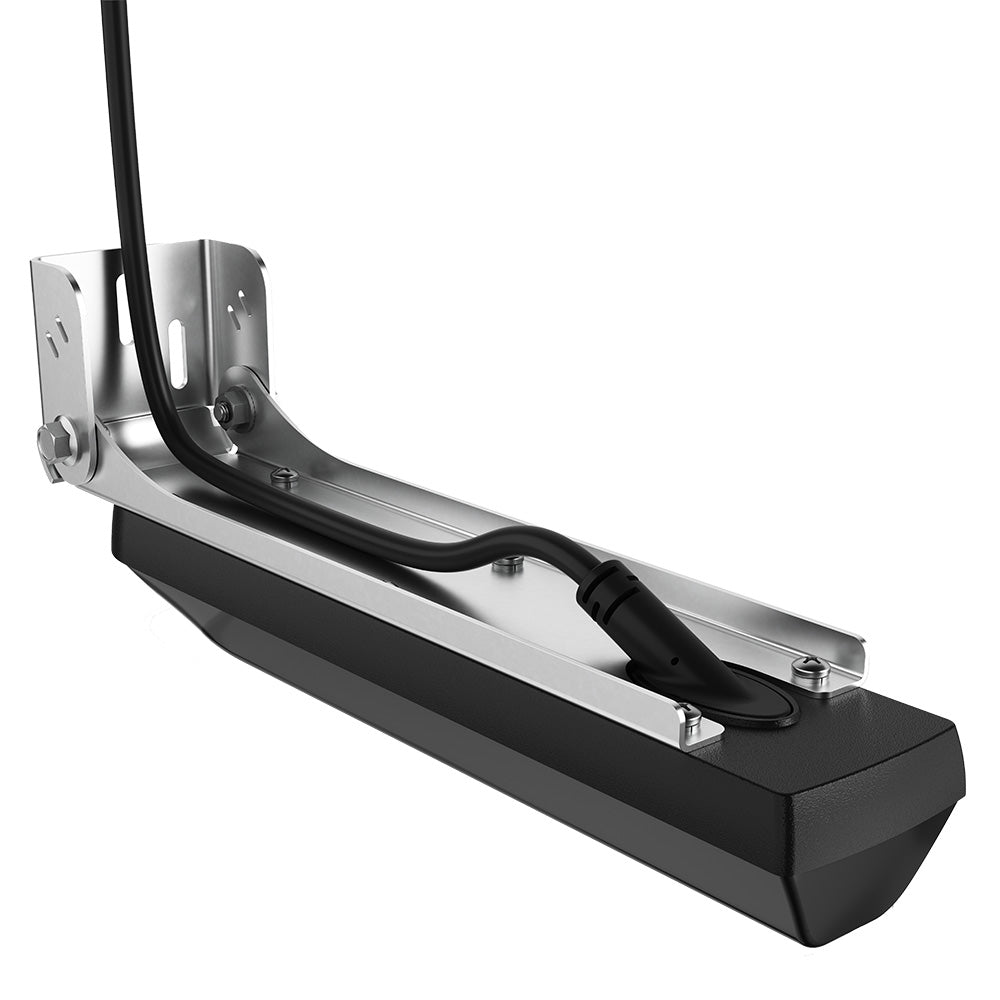

Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® High/Wide CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easier.

*Requires S3100 sonar module for Fish Reveal SideScan on HDS Pro

Features:

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
  • High/Wide Lowrance CHIRP delivers superb clarity and target separation over a wider coverage area
  • FishReveal™ with new SideScan* view as well as DownScan
  • Supports Medium and High/Wide CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module

*Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Specifications:

  • Cable Length (Feet): 25'
  • Chirp: High Wide
  • Imaging: Standard/Down/Side
  • Mounting Style: Transom
  • Pins: 9
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 5"H x 10"W x 15"L WT: 4.5 lbs
  • UPC: 9420064130351
