• KVH TracNet Coastal 5GWiFi Compact Terminal 01046501

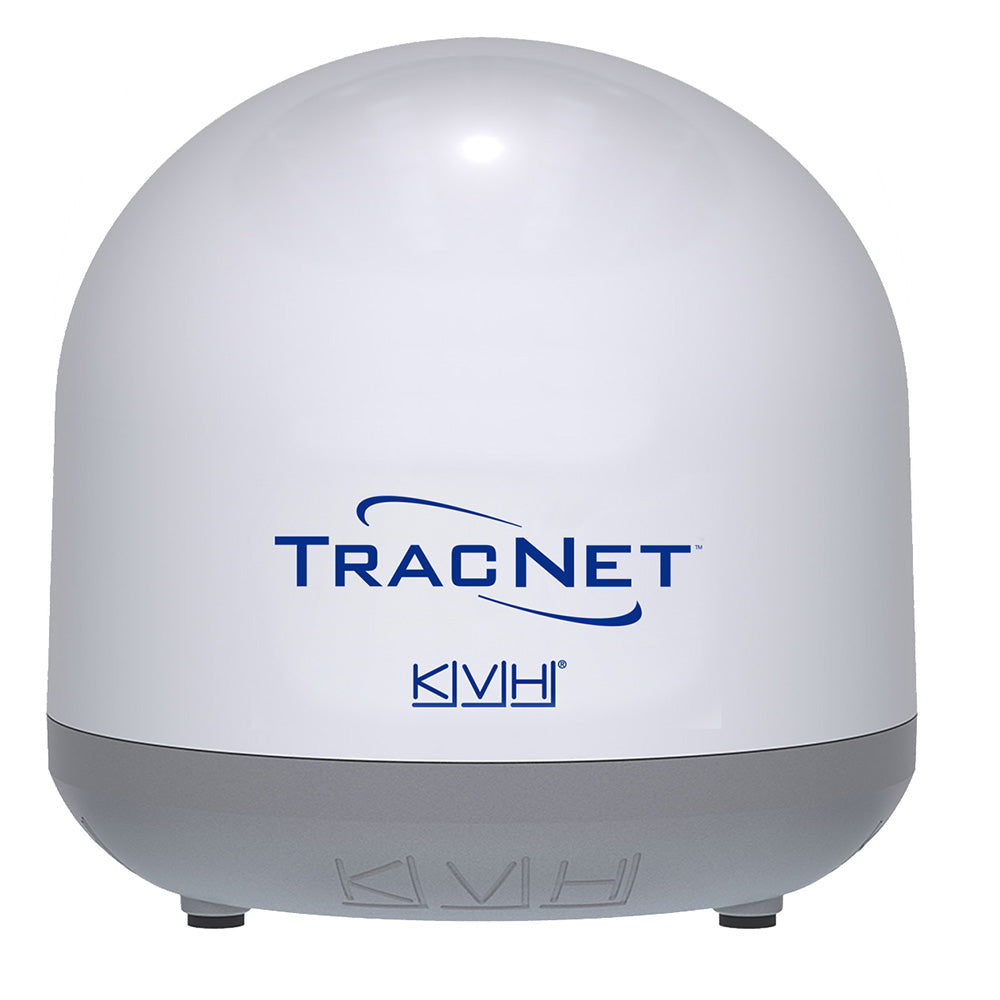

KVH TracNet Coastal 5G/WiFi Compact Terminal [01-0465-01]

Out of stock
$812.99
$812.99 $895.00
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 9% offSold out

TracNet Coastal 5G/WiFi Compact Terminal

Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Features:

  • 5G/LTE and WAN WiFi in a compact radome
  • Integrated cellular//WiFi system with intelligent hybrid switching
  • High-gain 5G cellular antennas for extended offshore coverage
  • Single-cable, DC-powered maritime design (PoE Injector)
  • Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
  • Data plans starting as low as $1/GB (subject to change)
  • Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
  • Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
  • Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
  • Marine-grade, compact antenna
  • Single-cable antenna installation with ultra-efficient DC power design
  • Easy integration with existing CommBox modems for simple hybrid switching with VSAT and other networks
  • Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more

Technical Specifications:

  • Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
  • Dome Weight - 8 lbs
  • Dome Operating Temperature - -25°C to +55°C (-13°F to +131°F)
  • Dome Survival Temperature - -30°C to +70°C (-22°F to +158°F)
  • Below Deck Unit (BDU) Ethernet Ports - 1, user LAN only
  • Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
  • Power Consumption (Nominal/Max) - 10W/14W
  • BDU Operating Temperature - -15°C to +55°C (+5°F to +131°F)
  • BDU Survival Temperature - -25°C to +70°C (-13°F to +158°F)
  • Intelligent Connection Switching Number of WANs Supported - 2 Cell/WAN WiFi

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
