• Hella Marine NaviLED PRO Port Navigation Lamp 2nm White Shroud 017460011

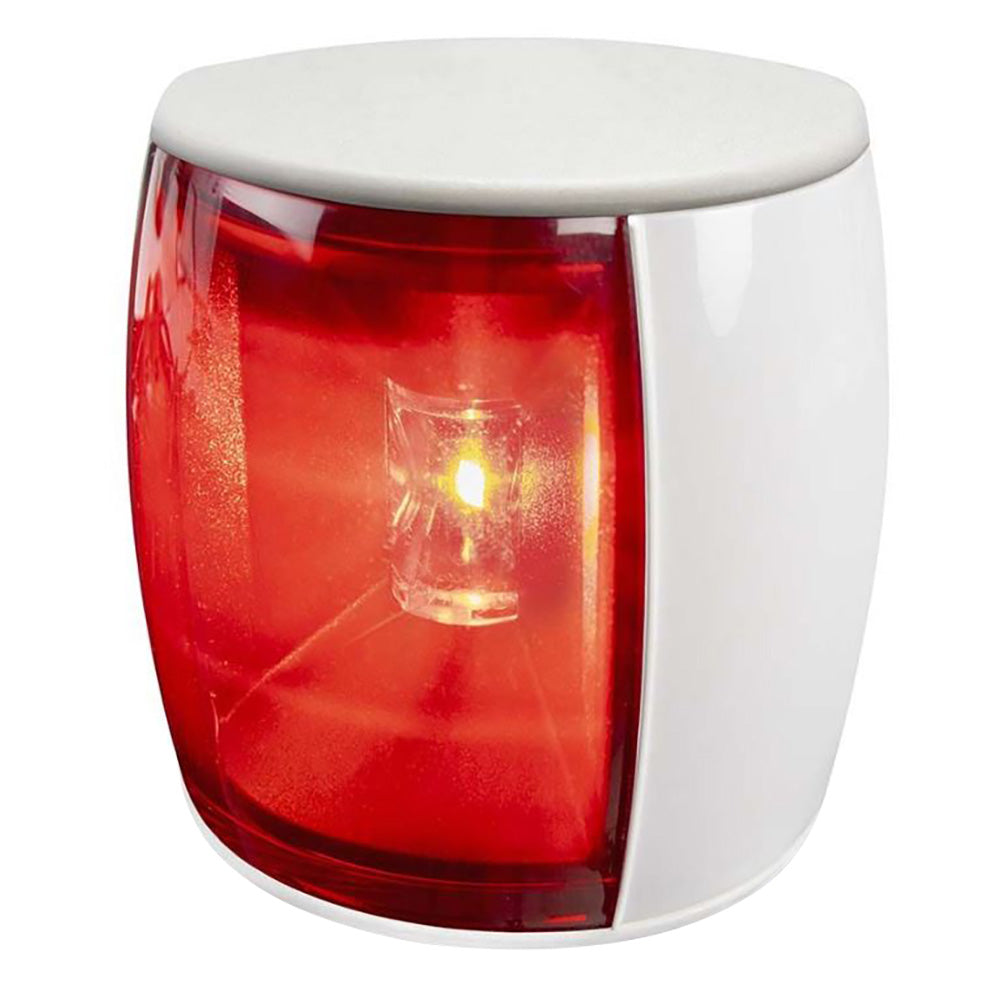

Hella Marine NaviLED PRO Port Navigation Lamp - 2nm - White Shroud [017460011]

Low stock! Only 3 left
$156.99
$156.99 $220.32
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance

Question about this product?

We're happy to help.

Up to 29% off

NaviLED PRO Port Navigation Lamp - 2nm - White Shroud

NaviLED PRO Port, Starboard, Masthead and Stern lamps cover vessel requirements up to 50m.

Hella marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation and other electrical equipment on board.

Hella marine lamps are rated at IP67 and completely sealed. UV from the sun, corrosive salt air and constant vibration: these lamps are impervious to the marine environment.

Ultra low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32V DC.

Made in New Zealand and fully supported by Hella marine's 5 year warranty, for complete peace of mind

Features:

  • 2 NM Visibility
  • IMO COL REG 72
  • USCG
  • ABYC C-5 Compliant
  • Maritime NZ
  • LED
  • 12/24V Multivolt
  • IP67 Completely Sealed
  • UV Resistant
  • 5-Year Warranty

Specifications:

  • Material Description: High-impact and UV-resistant acrylic
  • Minimum Visible Distance: 3 nautical miles (yachts and powerboats)
  • Cable: 2.5 meters of tinned marine cable
  • Operating Voltage: Multivolt™ 9–33V DC for 12 / 24V DC applications
  • Voltage Protection: Spike protected to +500 volts (reverse polarity protected to -500 volts)
  • Power Consumption: <2W (0.17A@12V / 0.09A@ 24V DC)
  • Degree of Protection: IP 67 - Completely Sealed
  • Weight: 250g (including cable)
  • Compliance: IMO Col Reg 72, USCG, ABYC C-5, RCM, Maritime NZ

Specifications:

  • Housing: White
  • LED: Yes
  • Lens Color: Red
  • Visible Range (Miles): 2 NM
  • Voltage - Input Range (Volts): 12/24V
  • Box Dimensions: 4"H x 4"W x 6"L WT: 0.75 lbs
  • UPC: 9416325253242
Hella Marine NaviLED PRO Port Navigation Lamp - 2nm - White Shroud [017460011]
