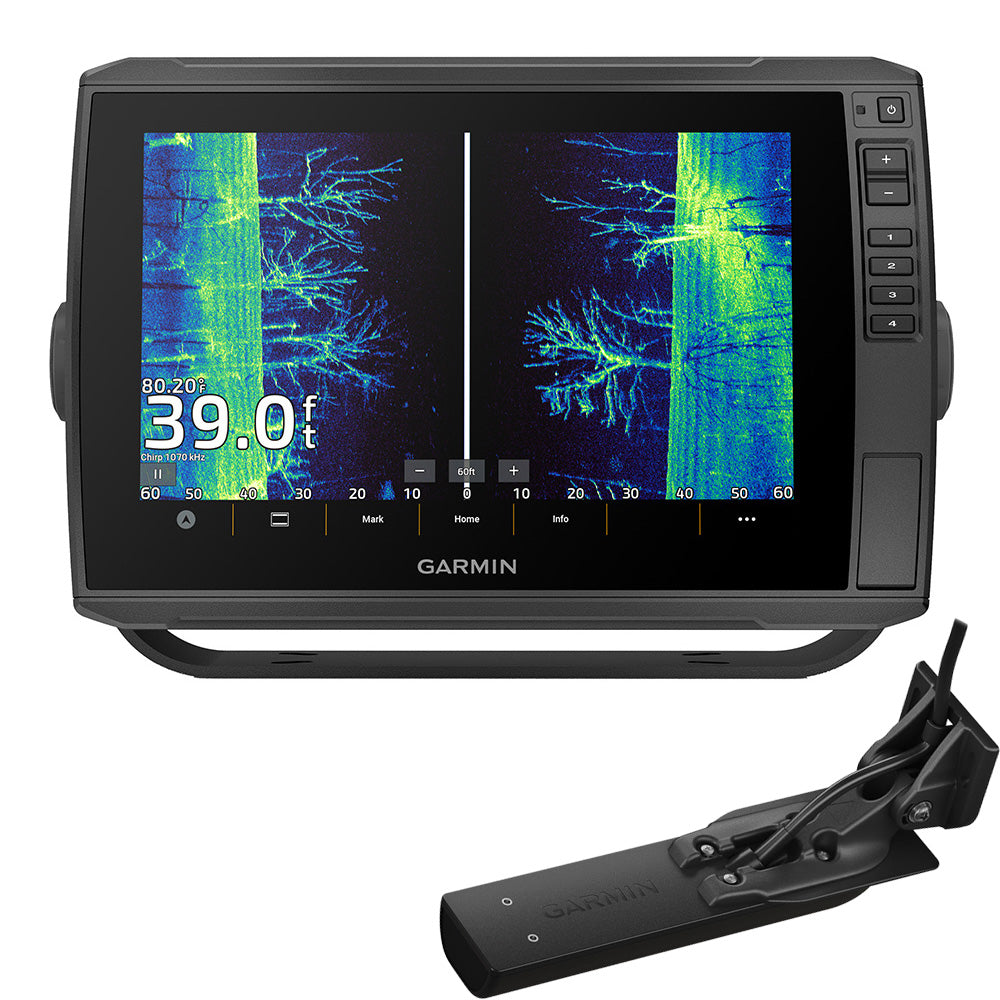

Garmin ECHOMAP Ultra 2 106sv w/GT56UHD-TM Transducer - Garmin Navionics+ *Remanufactured [010-N2880-01]

ECHOMAP™ Ultra 2 106sv with GT56UHD-TM Transducer - Garmin Navionics+ *Remanufactured

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features:

• ECHOMAP™ Ultra 2 106sv with Garmin Navionics+ Inland & Coastal Mapping
• GT56UHD-TM transducer
• 10” touchscreen
• Supports livescope™ sonar and more
• Wireless network; share sonar, waypoints, and routes.
• Capture screen recordings to share fish catches
• Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts

Experience unparalleled coverage and detail. With built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints and routes — with them.

Stay Connected - Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 106sv with optional Garmin Navionics+
• GT56UHD-TM transducer
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• Hardware
• Documentation
• Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
• Weight: 4.0 lbs (1.8 kg)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA, IPS
• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist
• Maps & Memory:
• Accepts Data Cards: 2 microSD cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has Built-In Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+™: Yes
• Garmin Navionics+ Vision+™: Yes
• TOPO 100k: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• ActiveCaptain® Compatible: Yes
• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 2.5 A
• Maximum Current Draw at 12 VDC: 5.0 A
• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 600 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 kHz, L, M, H Chirp)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

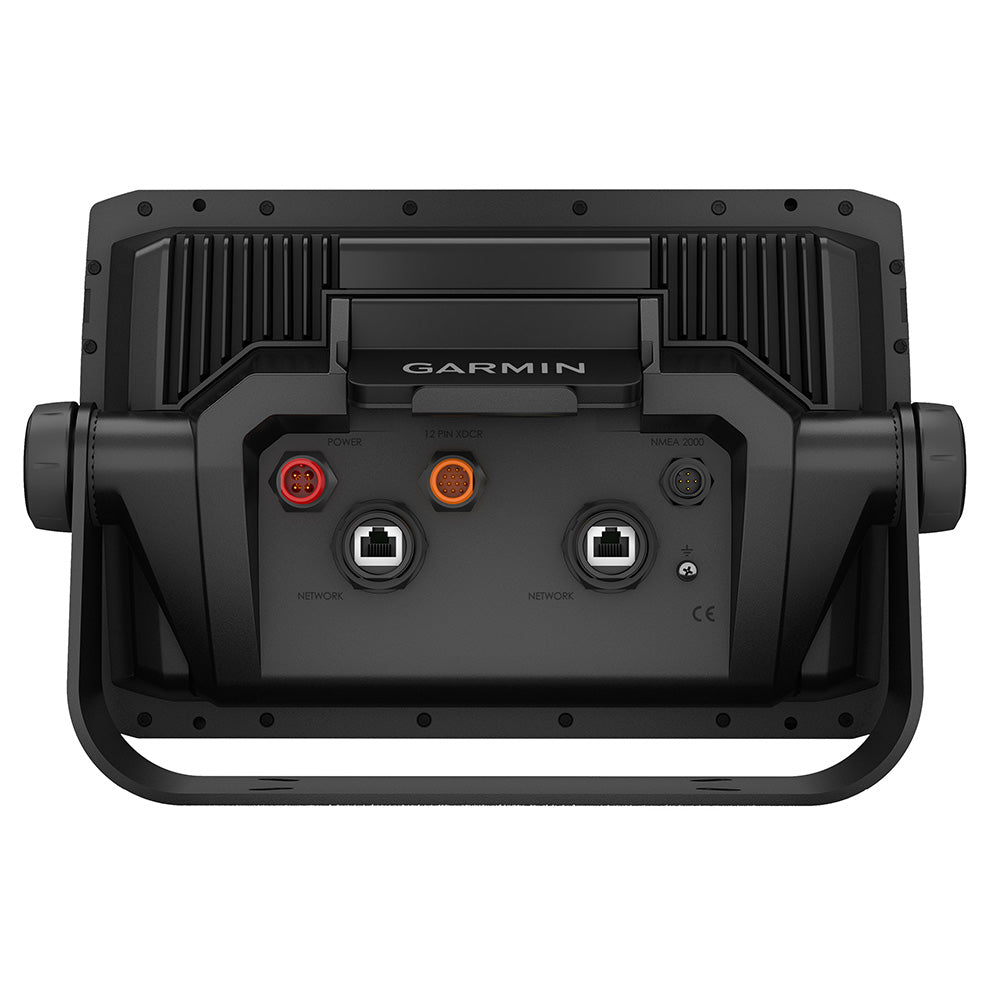

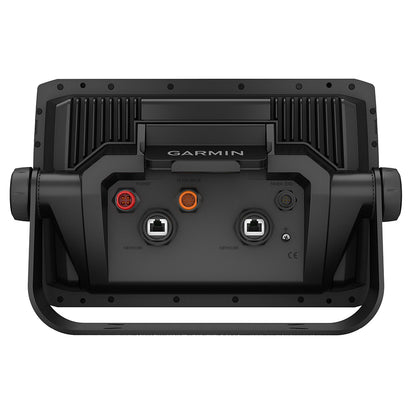

Connections:

• NMEA 2000® Ports: 1
• Garmin Marine Network Ports: 2 (Large Connector)
• 12-Pin Transducer Ports: 12-Pin Scanning Sonar
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
