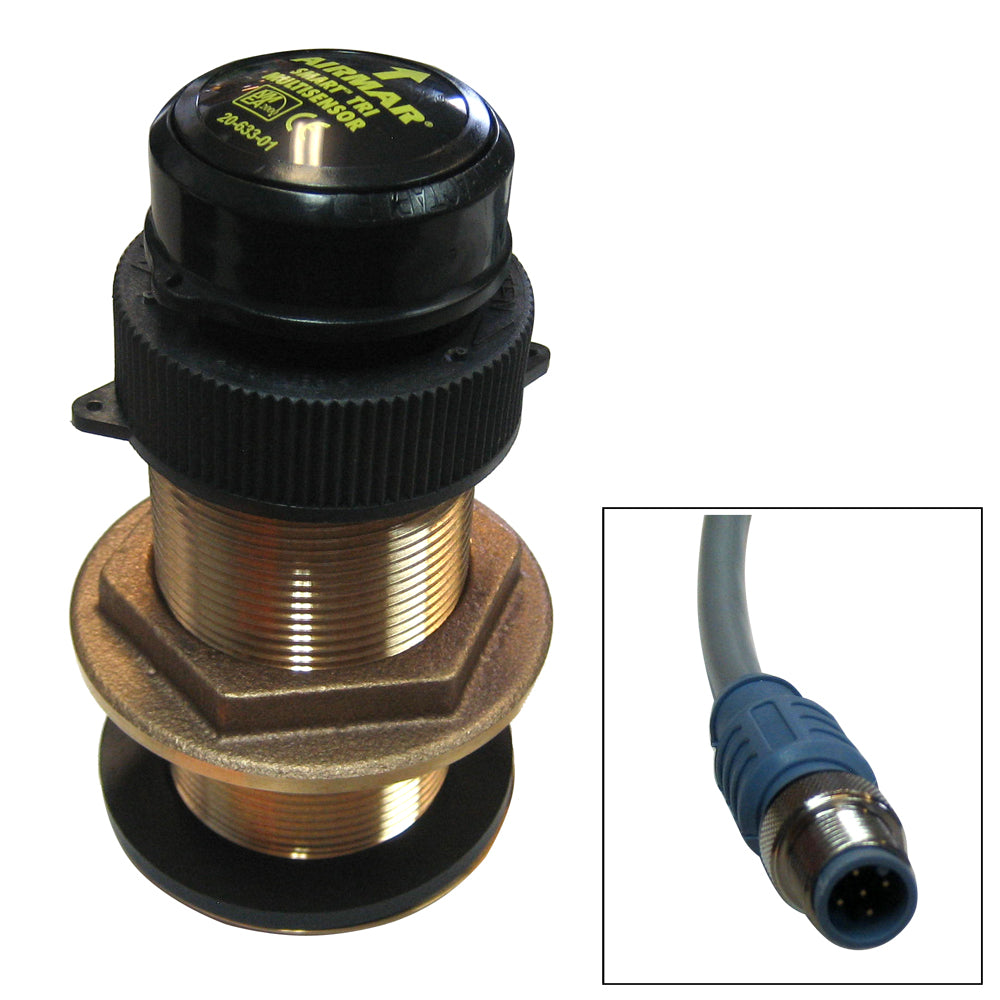

Furuno Smart Sensor DT-800MSF - Thru-Hull Transducer [DT-800MSF]
Out of stock
Regular price
$395.00
Sale price
$395.00
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Secure checkout
- Check part compatibility
- Parts assistance
Sorry, it's out of stock.
But we can let you know when it's back in.
Question about this product?
We're happy to help.
Sold out
Furuno DT-800MSF - Airmar B617V Housing Style Transducer
Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')
Standard Features:
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
- Weight: 1.5kg (3.4lb)
- Acoustic Window: Urethane
- Data Update Rate: 1 per second
- Minimum Sounding Depth: 0.5M (1.6')
- Maximum Sounding Depth: 180M (590)
- Pressure Rating: 3M (10')
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
- Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
- Supply Current: 40 mA
- Standard Cable Length: 6M
- NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Temperature: Yes
- Mounting Style: Thru-Hull
- Cable Length (Feet): 20'
- Box Dimensions: 4"H x 8"W x 10"L WT: 3.4 lbs
- UPC: 611679330543
