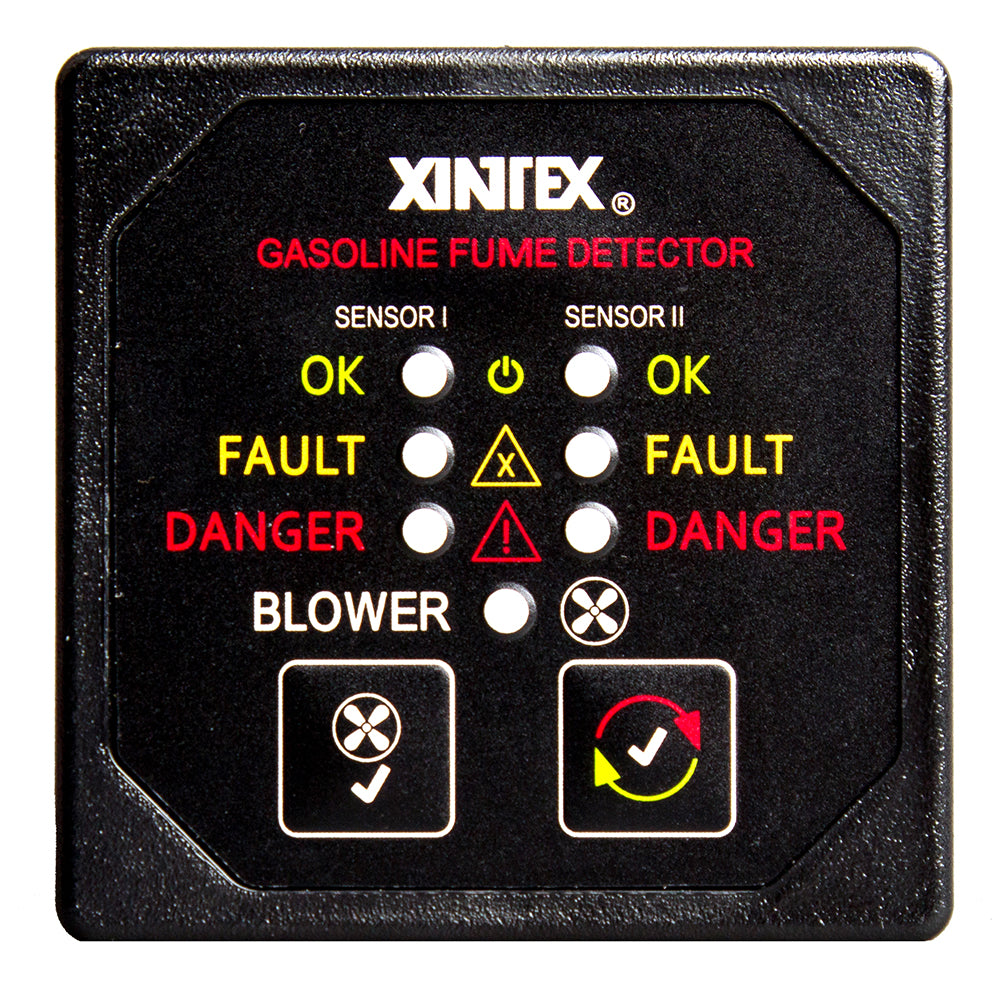

Fireboy-Xintex Gasoline Fume Detector w/Dual Channel Blower Control - 12/24V [G-2BB-R]
Low stock! Only 3 left
Regular price
$618.99
Sale price
$618.99
Regular price
$920.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Secure checkout
- Check part compatibility
- Parts assistance
Question about this product?
We're happy to help.
Up to 33% off
Gasoline Fume Detector with Dual Channel and Blower Control - 12/24V
The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.
Complete system includes Blower Control Relay, easy installation and precise monitoring.
Features:
- Simple Installation
- Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
- Monitors two (2) separate areas simultaneously
- Automatically activates bilge blower
Technical Specifications:
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Current Draw Nominal - 55mA
- Current Draw Maximum - 150mA
- Operating Voltage - 9 to 30V DC
- Alarm Horn - 68 dB
- Display Style - Square with Black Bezel
- Display Dimensions - 2-5/8" x 2-5/8" (6.7 x 6.7 cm)
- Cutout Dimension - 2-1/8" (5.4 cm) round hole
In the Box:
- Fume Detector
- Fuel sensors x two (2)
- 20' Extension Cable x two (2)
- Blower Relay x one (1)
- Instruction manual
*Sold as an Individual
Specifications:
- Blower Relay: Yes
- Fume Type: Gasoline
- Generator Shutdown: No
- Sensors Included: 2
- Voltage - Input Range (Volts): 9-30v
- Box Dimensions: 4"H x 4"W x 8"L WT: 1.6 lbs
- UPC: 619749202561
Owner's Manual (pdf)
Brochure (pdf)
