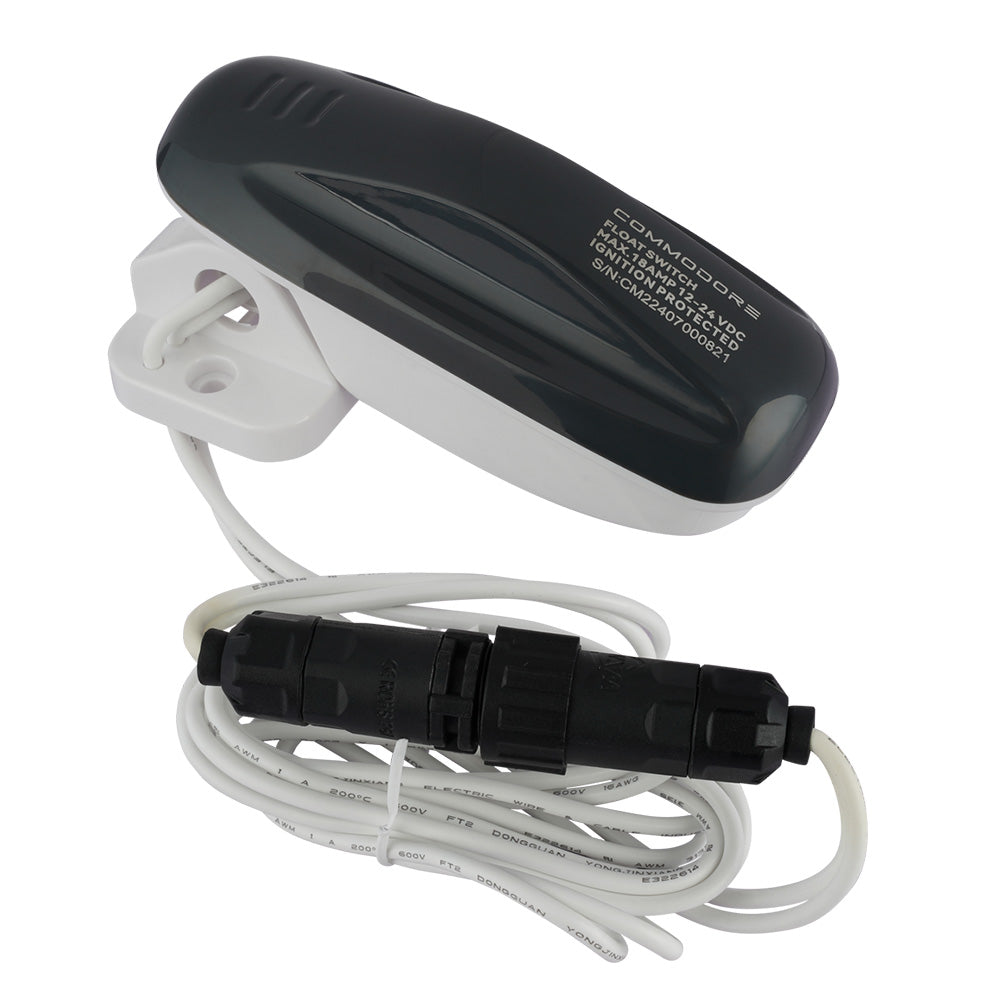

Commodore 18A Float Switch [CM-2-BS]

18A Float Switch

The 02-Series Automatic Float Switch transforms any manual bilge pump into an efficient and reliable automatic system. Designed with a unique ball-bearing activation mechanism, this float switch provides superior reliability and longevity compared to traditional reed switches. Built to handle bilge pumps with a maximum current draw of 18A, the switch is compatible with 12V, 24V, and 32V DC systems, making it versatile for a variety of marine applications.

Fully submersible and made with high-quality ABS material, the switch is sealed using ultrasonic welding to ensure leak-proof operation. With a compact design and straightforward installation, it seamlessly integrates into any marine system. The ignition-protected construction and mercury-free design guarantee safe and eco-friendly performance, while its long lifespan ensures consistent operation through millions of cycles.

Features:

• Converts Manual Bilge Pumps to Automatic: This float switch transforms any compatible bilge pump into an automatic system, activating the pump when water levels reach 2.36 inches and deactivating it at 1.18 inches.
• Unique Ball Bearing Design: Features an internal weighted ball bearing activation mechanism for superior reliability and smoother operation compared to traditional reed switch designs.
• Fully Submersible and Leak-Proof: Constructed with high-quality ABS material and sealed using ultrasonic welding, the switch is both durable and fully submersible for tough marine environments.
• Mercury-Free and Eco-Friendly: Designed without mercury, ensuring safe operation for the environment while complying with international marine safety standards.
• High Current Capacity: Handles up to 18A at 12V, making it compatible with a wide range of bilge pumps and ideal for demanding marine applications.
• Easy Installation: The compact and user-friendly design allows for straightforward installation, reducing setup time and effort.
• Long-Life and High Switching Frequency: Built to withstand up to 10 million cycles, this switch ensures dependable performance for years of use.
• Ignition-Protected Construction: Meets ISO 8846 Marine standards, making it safe for installation in engine compartments or confined spaces.

Specifications:

• Wire Load: 3 ft.
• Dimensions: 7.68" x 5.71"
• Weight: 0.29 lbs

Specifications:

• Operation: Automatic
• Box Dimensions: 3"H x 5"W x 8"L WT: 0.48 lbs
• UPC: 817683022942
