Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp [7601]
- Free worldwide shipping
- In stock, ready to ship

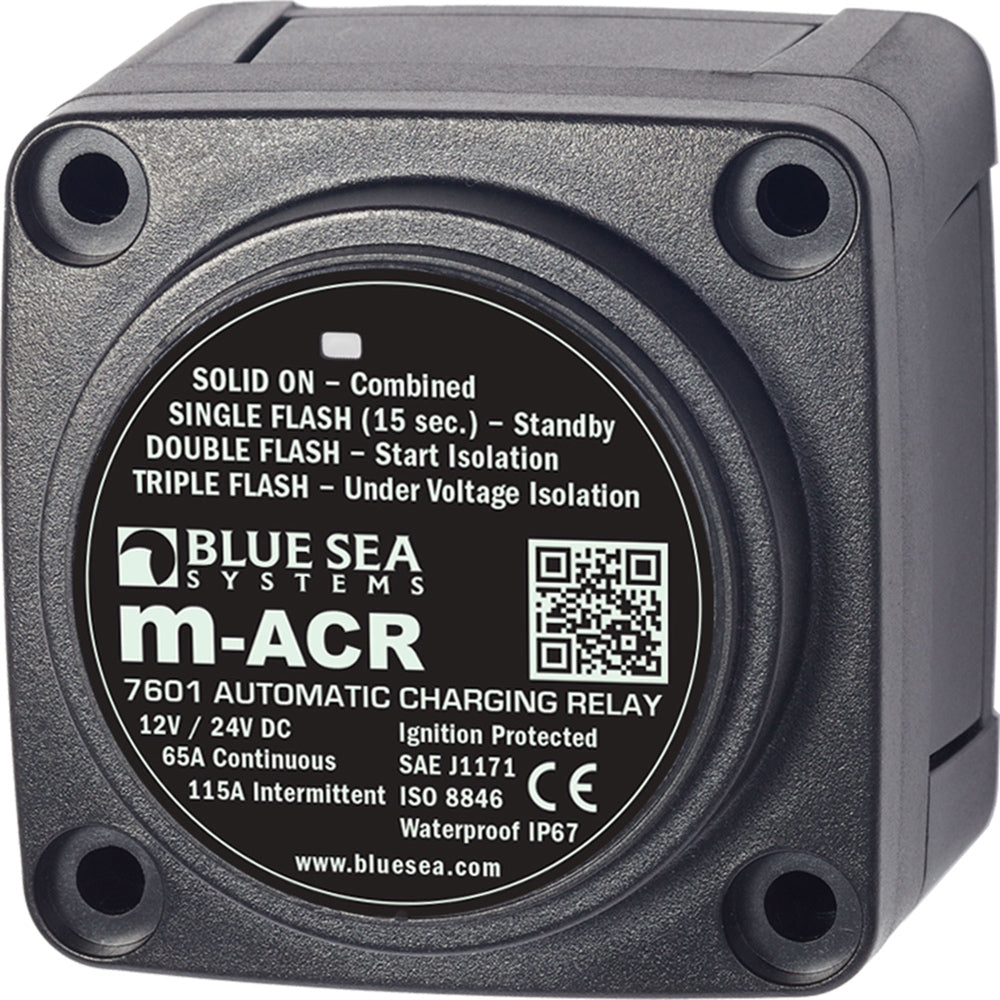

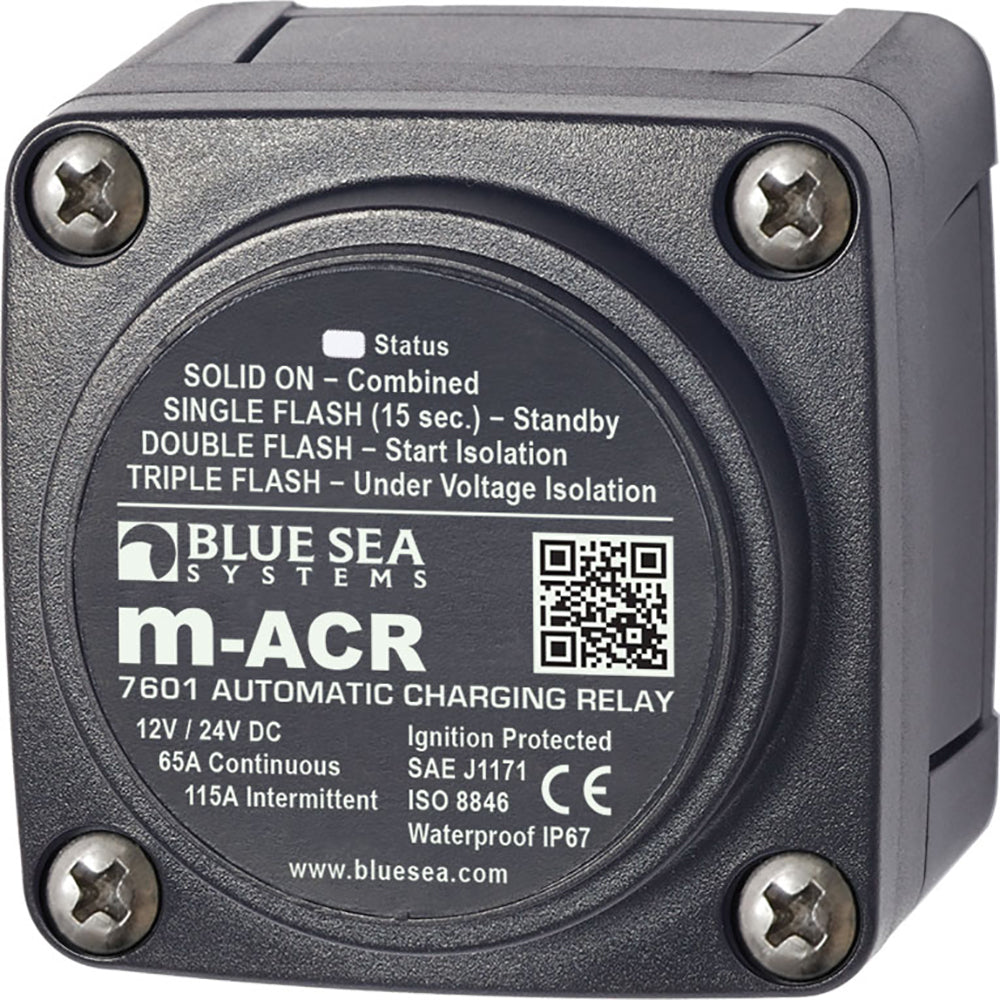

7601 DC Mini ACR Automatic Charging Relay - 65 Amp
Features:
- 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines

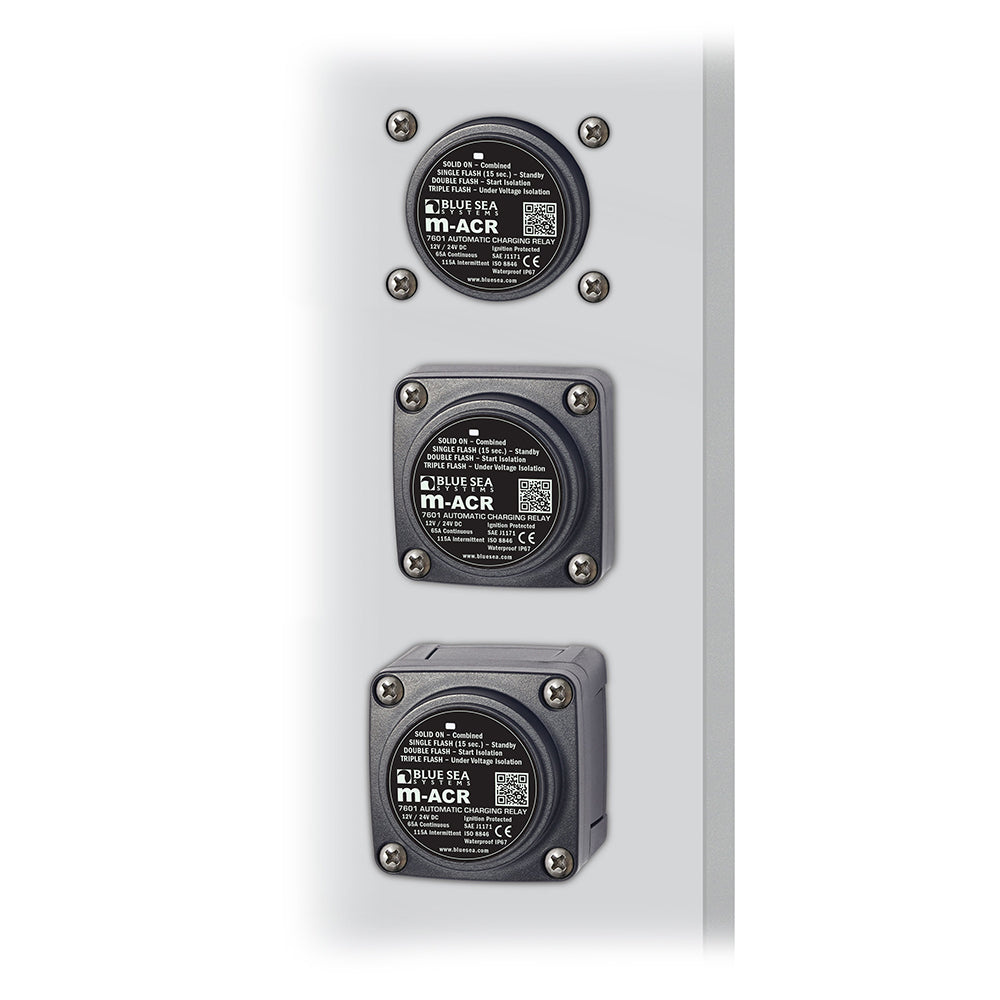

- Compact case design allows surface and panel mounting
- Senses charging on two battery banks
- Snap-on cover insulates terminal connections
- LED indicates ACR status
- 1/4" x .032" male quick connect terminal for ground
- 5/8" (16 mm) stud length to accept multiple cable terminals
- 12V DC voltage input
Specifications:
- Intermittent Rating: 5 min.: 115A
- Terminal Stud Size: 1/4"-20
- Relay Contact Position: Open (30 sec.): 12.75V DC
- Continuous Rating: 65A
- Maximum Torque: 75 in-lb (8.5 Nm)
- Relay Contact Position - Open High: 16.0V DC
- Amperage Operating Current: 175mA (Combine)
- Relay Contact Position: Combine (30 sec.): 13.0V DC
- Under Voltage Lockout: 9.5V DC
- Amperage Operating Current: 15mA (Open)
- Relay Contact Position: Combine (2 min.): 13.6V DC
- Maximum Cable Size: 1/0 AWG
- Relay Contact Position: Open (10 sec.): 12.35V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Continuous Amperage: 65a
- Box Dimensions: 3"H x 4"W x 7"L WT: 0.56 lbs
- UPC: 632085076016
Owner's Manual (pdf)
