• Blue Sea 7413 ASeries Flat Rocker Circuit Breaker Double Pole 20A 7413

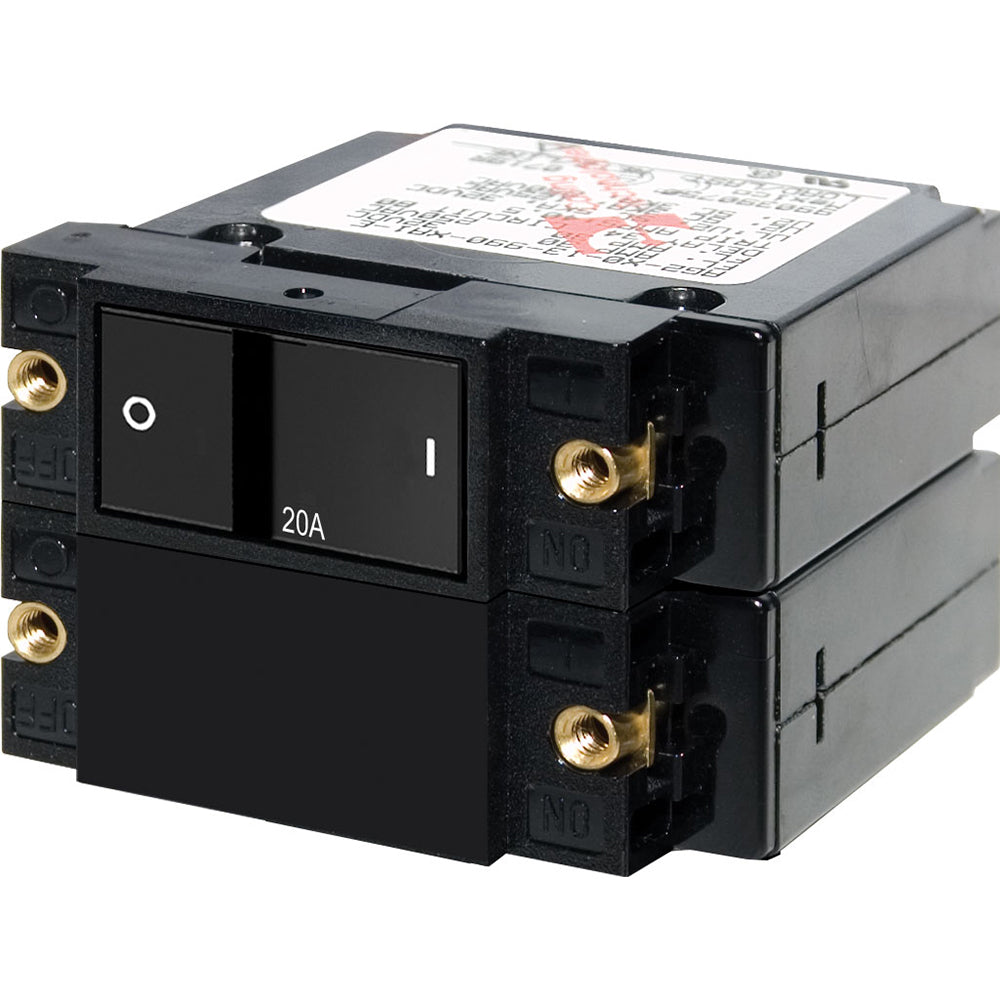

Blue Sea 7413 A-Series Flat Rocker Circuit Breaker - Double Pole - 20A [7413]

Low stock! Only 10 left
$58.99
$58.99 $76.99
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance

Question about this product?

We're happy to help.

Up to 23% off

A-Series Flat Rocker Circuit Breaker - Double Pole - 20A

Features:

  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting


Specifications:
  • Amperage : 20A AC / 20A DC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 20a
  • Box Dimensions: 2"H x 2"W x 4"L WT: 0.5 lbs
  • UPC: 632085074135
