• Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block Common Source 5196

Blue Sea 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source [5196]

28 in stock
$59.99
$59.99 $78.99
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance

Question about this product?

We're happy to help.

Up to 24% off

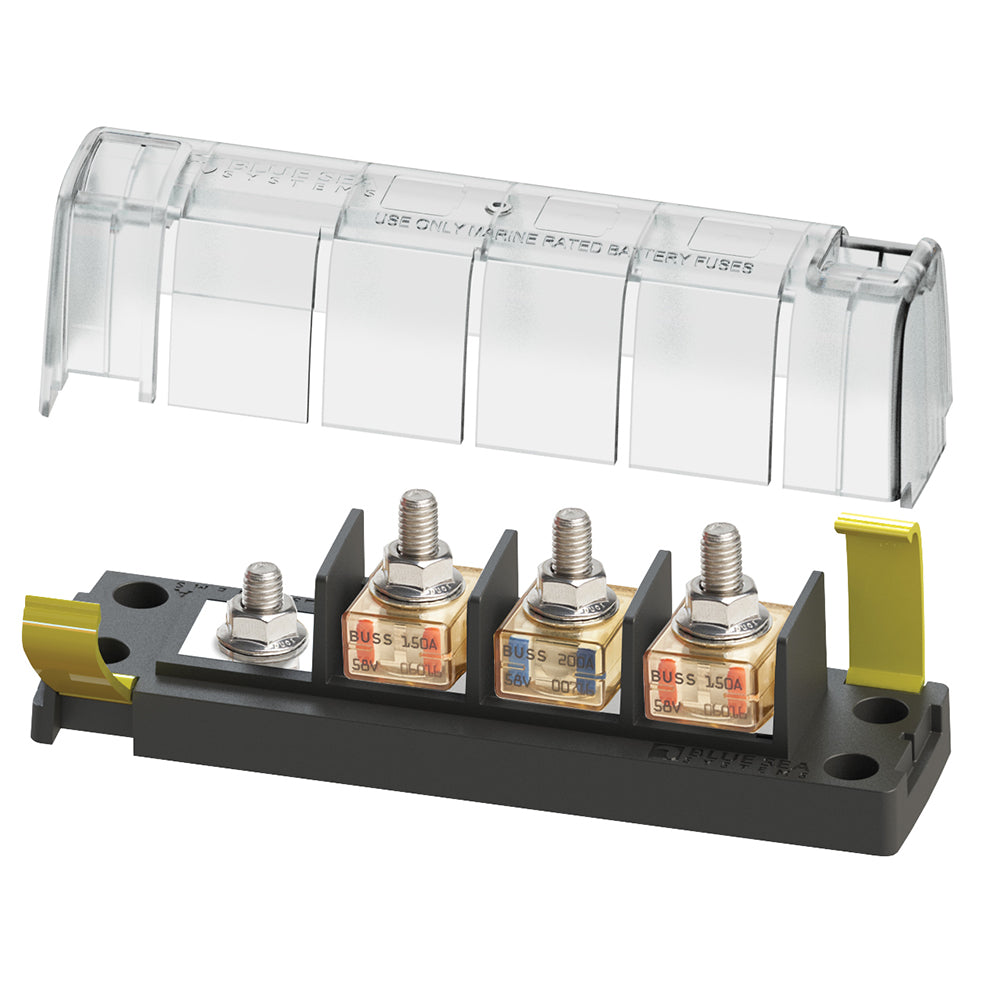

MRBF Surface Mount 3 Circuit Fuse Block - Common Source

  • Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
  • The independent source fuse block (5194) is ideal for 3 output battery chargers
  • The common source fuse block (5196) provides 3 loads from a single source
  • Clip-on cover insulates terminal connections
  • Versatile wiring options allow all wires to come out a single side
  • Label recesses for easy circuit identification
  • One-piece stainless flange nuts ensure safe and secure connections

Specifications

  • Ignition Protected: Yes
  • Maximum Amperage: 300a per block/240a per circuit
  • Maximum Voltage: 58v DC
  • Maximum Torque: 100 in-lb
  • Terminal Stud Size: M8 (5/16"-18)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: Terminal
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 5"W x 10"L WT: 1.24 lbs
  • UPC: 632085051969
