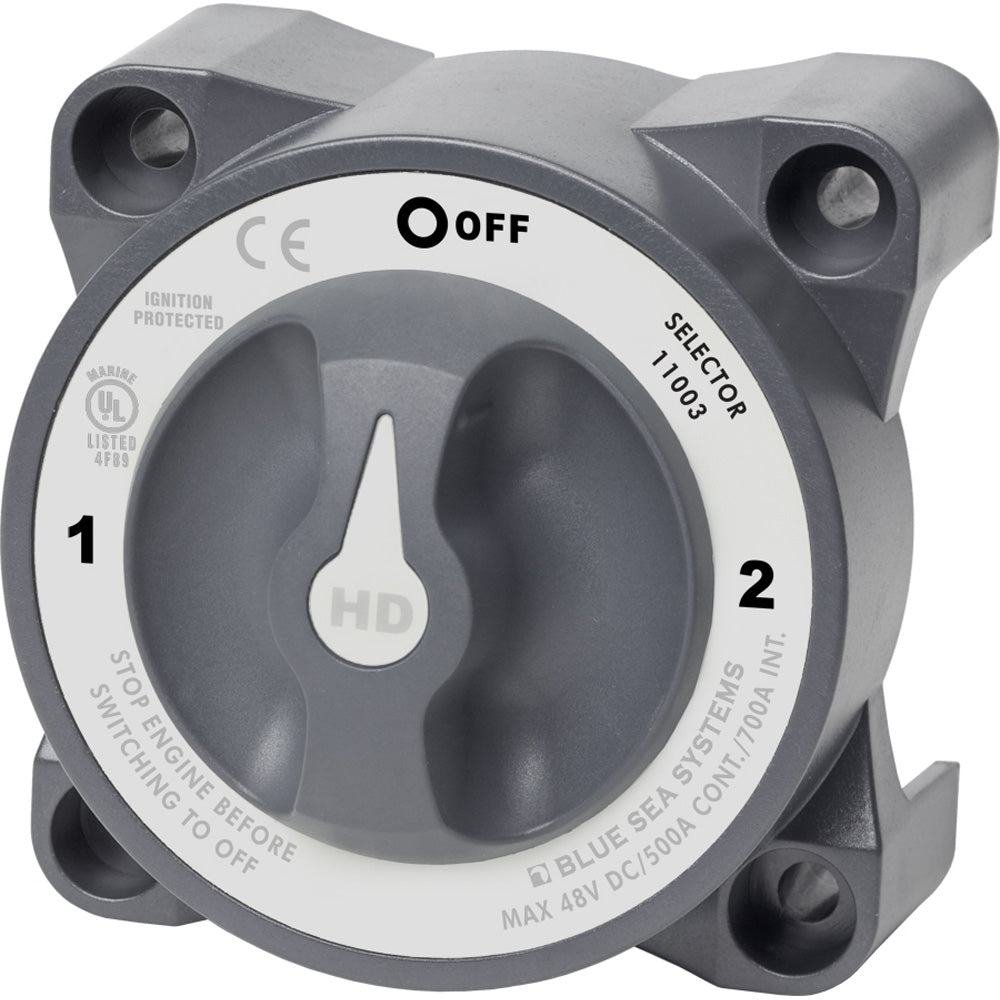

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position [11003]
Low stock! Only 11 left
Regular price
$98.99
Sale price
$98.99
Regular price
$137.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Secure checkout
- Check part compatibility
- Parts assistance
Question about this product?
We're happy to help.
Up to 28% off
11003
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats

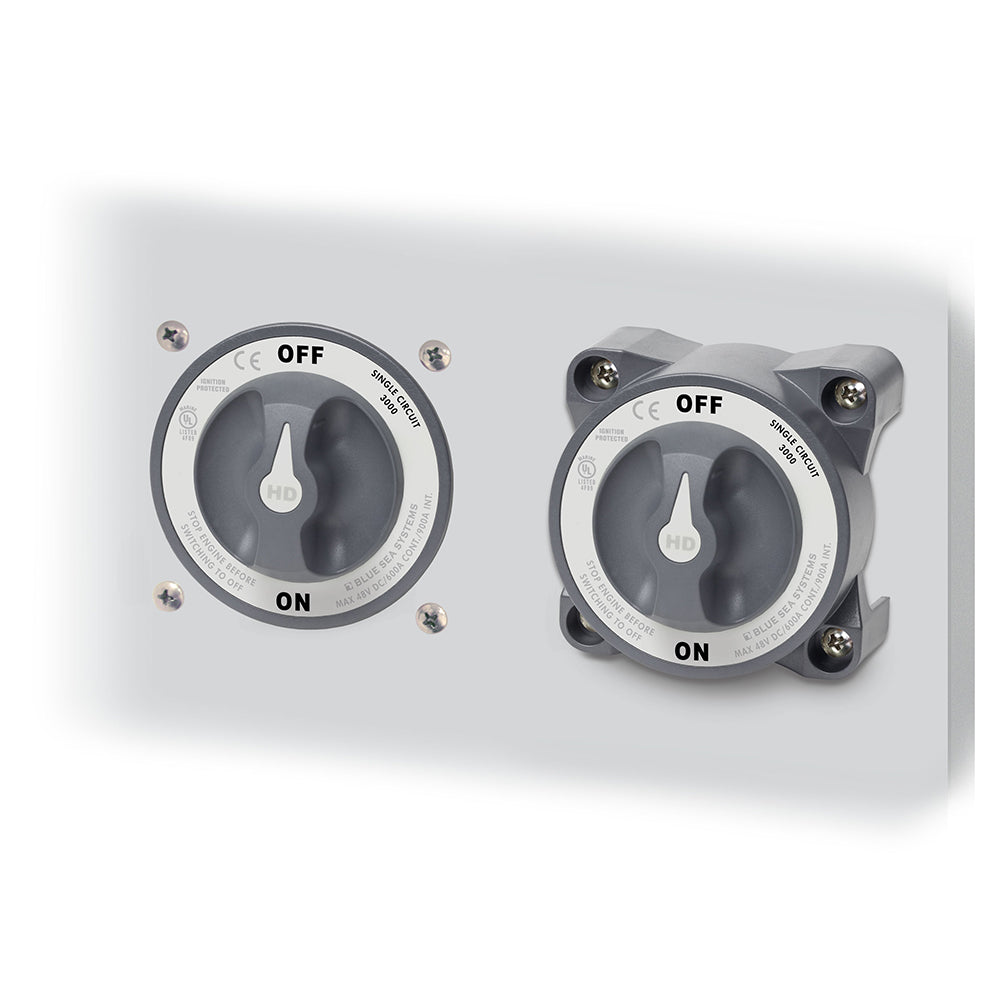

- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables

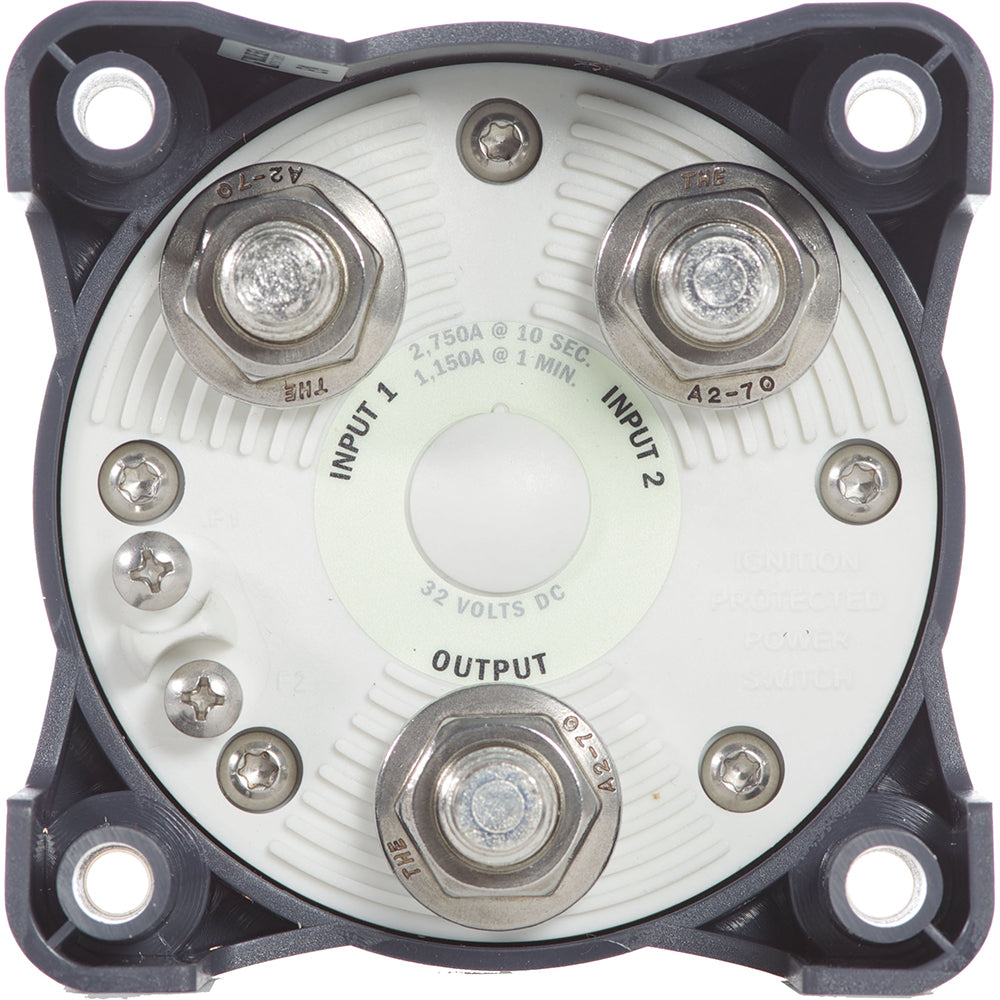

- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
- AFD: Yes
- Positions: 3
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085110031
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
