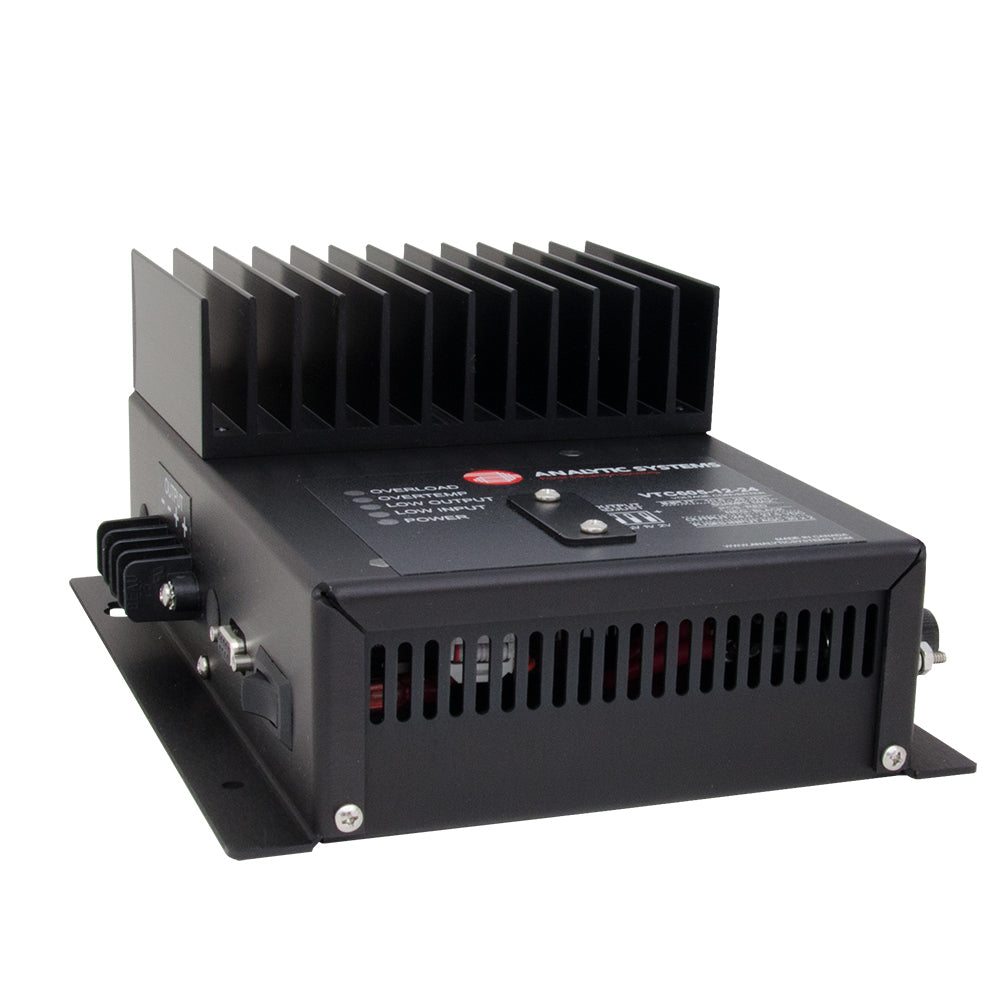

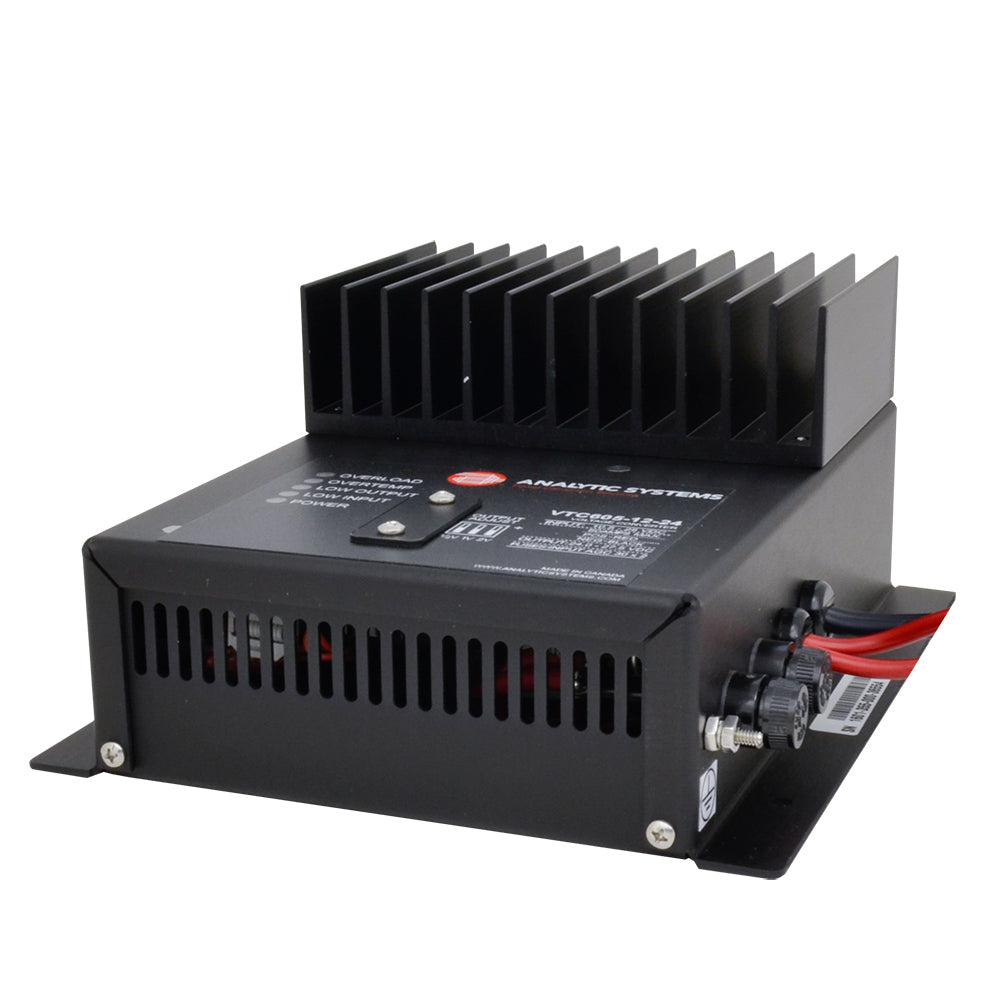

Analytic Systems Non Iso DC/DC Converter 22A, 24V Out, 11-15V In [VTC605-12-24]

Out of stock
$922.00
$922.00 $0.00
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Non Iso DC/DC Converter 22A, 24V Out, 11-15V In

Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 DC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.

Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage,
the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.

Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.

Features:

  • Ultra-quiet power sensitive electronics without interference
  • Rugged and reliable to ensure years of safe and trouble free operation
  • Power sensitive electronics without interference
  • Simple operation
  • Paralleling Diodes
  • European ROHS Compliant (Lead Free Manufactured)
  • Electric Fork Lift (Filtering and Surge Suppression)
  • Open Frame (No chassis just heat sink bars)
  • Safety Special Inspection (CSA/UL)
  • Heavy duty ruggedization with wide temperature range
  • Custom input/output available
  • Three year parts and labour warranty

Specifications:

  • Charger Input - Voltage: 12v
  • Charger Output - Amps: 22a
  • Charger Output Voltage: 24v
  • Box Dimensions: 7"H x 11"W x 12"L WT: 6.65 lbs
