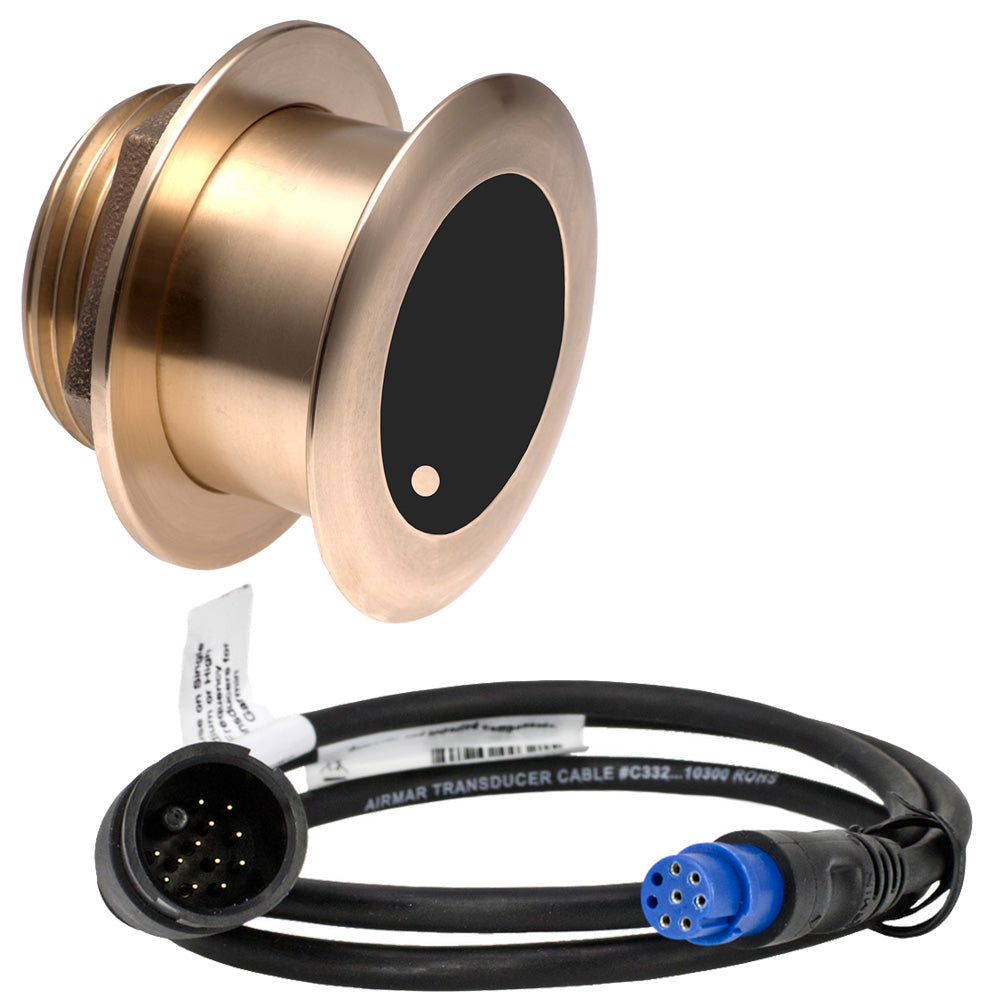

Airmar B175L Bronze 20 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector [B175C-20-L-8G]

Out of stock
$1,799.99
$1,799.99 $1,979.99
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 9% offSold out

B175L Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

Airmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

  • Garmin 8-Pin Mix & Match Cable for Chirp Transducers
  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance
  • Low frequency: 40 to 60 kHz
  • 32° to 21° beamwidth
  • Maximum depth of 762 m (2500')
  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
  • Recommended for stepped, planing, or displacement hull
  • Bronze housing for use in a fiberglass or wood hull
  • Also available in a stainless steel housing (SS175L) for use with all hull materials
  • Patented Xducer ID® technology

Specifications:

  • Power Rating: 1 kW
  • Max Deadrise Angle: 24°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 11 m (36')
  • Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
  • Usable Shaft Length: 71 mm (2.80")
  • Mounting Style: Tilted Element Thru-Hull
  • Acoustic Window: Urethane
  • Common Use: Fishing
  • Low Frequency: 40-60 kHz
  • Low Frequency Beamwidth: 32°-21°
  • Max Deadrise: Up to 24°
  • Max Depth: 762 m (2500')
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Single-Band
  • Tilted Element: Yes
  • Weight: 2.7 kg (6 lbs.)
