• Airmar B164 Bronze ThruHull 50200 kHz 1 kW 0 Tilted Element Requires Mix Match Cable B1640MM

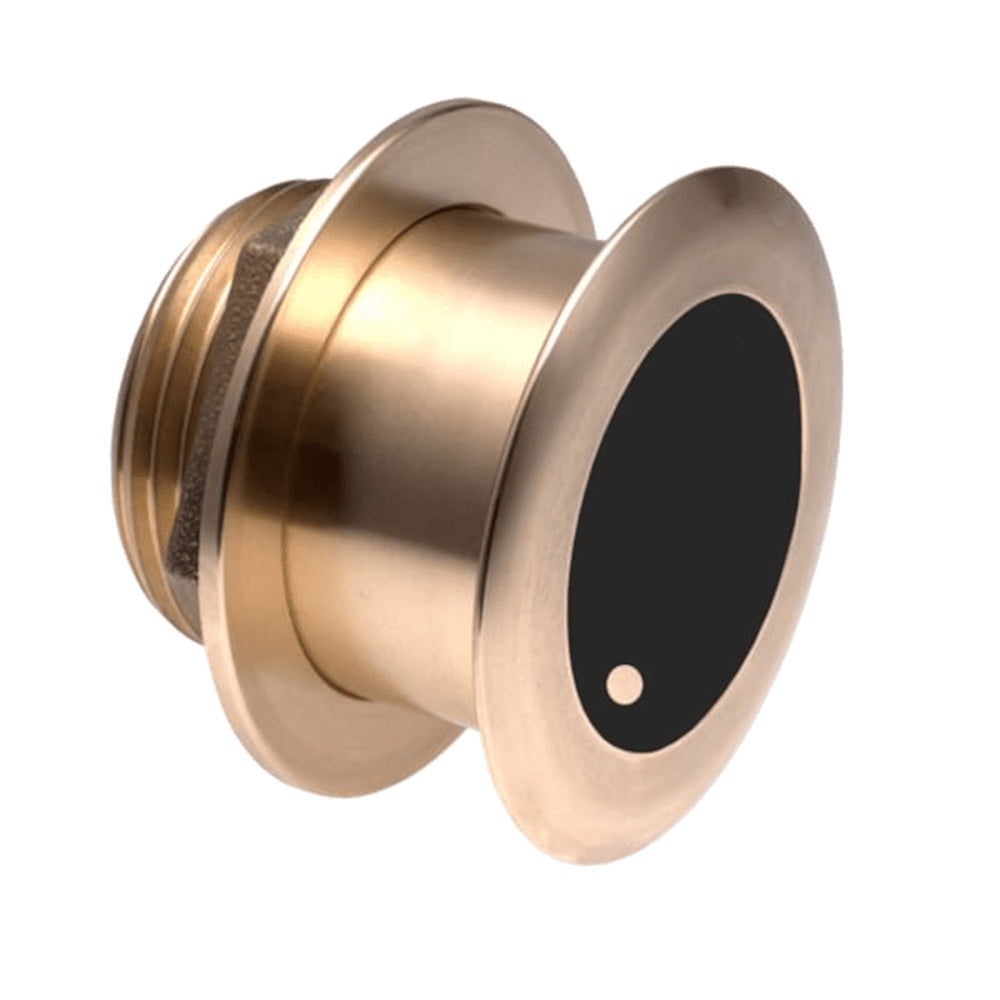

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 0 Tilted Element - Requires Mix Match Cable [B164-0-MM]

Out of stock
$1,264.00
$1,264.00 $1,399.99
Shipping calculated at checkout.
  • Secure checkout
  • Check part compatibility
  • Parts assistance
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 10% offSold out

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 0° Tilted Element - Requires Mix & Match Cable

0° tilted version for 0 to 7° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.

Features:

  • Depth and fast-response water-temperature sensing
  • 1 kW of power
  • Dual-frequency elements:
  • 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
  • 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
  • Interfaces to any 600 W or 1 kW echo sounder
  • Engineered for center-console and trailered boats
  • Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
  • No effect on the boat’s running performance
  • Available in a stainless steel housing (SS164) for use in all hull materials
  • Patented Xducer ID® technology

Specifications:

  • Acoustic Window: Urethane
  • Cable-Length: 2 M (6.5')
  • Common Use: Leisure/Yachting, Fishing
  • Connector: Airmar 9-Pin (MM1)
  • Conventional Beam: 22°x20°/6°
  • Country of Origin: USA
  • Deadrise Range: 0° to 7°
  • Frequency Band: 50/200 kHz
  • Material: Bronze
  • Max Deadrise: Up to 7°
  • Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
  • Mix and Match Series: 9-Pin 1000 Watt
  • Mounting Style: Tilted Element Thru-Hull
  • Retractable housing: No
  • Sensor Connector: MM1
  • Single or Dual Frequency: Conventional Dual Frequency
  • Tilt Angle: 0°
  • Tilted Element: Yes
  • Weight: 2.7 kg (6 lbs)
  • Power Rating: 1 kW
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 11 m (36')
  • Hole Size: 95 mm (3-3/4")
  • Usable Shaft Length: 71 mm (2.80")
  • Display Connector: Cable Required

Specifications:

  • Cable Length (Feet): 6.5'
  • Chirp: No
  • Imaging: Standard
  • Mounting Style: Thru-Hull
  • Speed Included: No
  • Temperature: Yes
