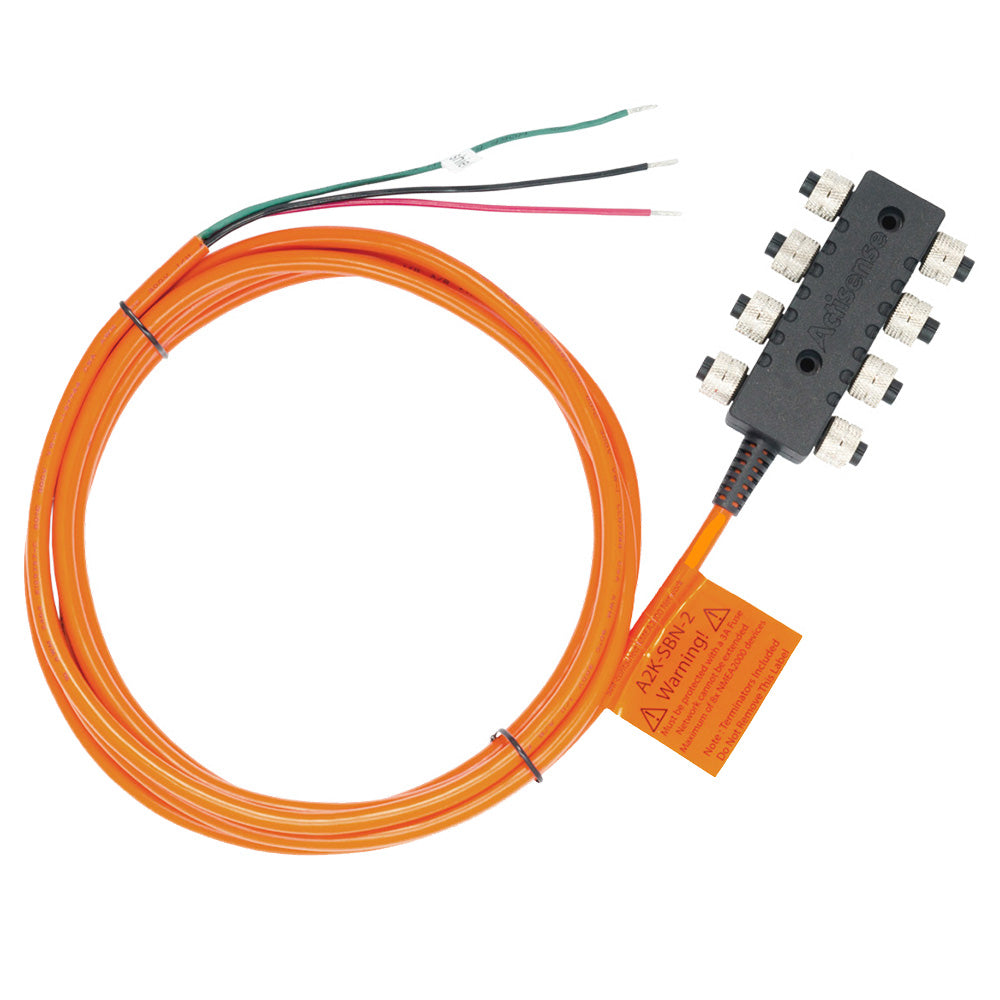

Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators Power Feed [A2K-SBN-2]

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed

Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.

The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.

Features:

• Self-contained NMEA 2000 Network
• Integrated Termination Resistors
• 8x NMEA 2000 drops
• Ruggedized, flame retardant over-molded housing
• Metal coupling nuts
• Integrated EMI Shield
• Orange, UL Rated, 3-meter power cable
• Color coded wires, stripped and tinned
• Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
• Simple installation, fewer components, more reliable, lower cost
• Accommodates the vast majority of compact NMEA 2000 networks
• Suitable for wet and harsh conditions- highly desirable in marine environments
• Reliable, long lasting connections
• Less likely to be susceptible to interference
• UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables
• Quick installation, no special tools required

Technical Specifications:

Electrical

• Rated Current - 3A
• Rated Voltage - 60 V (AC/DC)
• Internal Termination Resistors - 2 x 120Ω 250mW

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 – “A” – polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - TPU (Halogen Free) over Epoxy filled PBT housing
• Flammability rating - UL94 V-0
• Internal Housing Shield - Copper foil
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.8mm
• Cable Length - 3m
• Wire Length - 150mm (10mm stripped and tinned)
• Wire Jacket - PVC, Red & Black
• Wires - 16 AWG (stripped and tinned)
• Drain - 18 AWG (34 strand tinned copper)
• Cable Shield - Al-mylar
• Weight - 410g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25°C to +70°C
• Storage Temperature - -40°C to +85°C

Specifications:

• Data Interface: NMEA 2000
• Cable Length (Meters): 3m
• Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs
• UPC: 5060998710188
